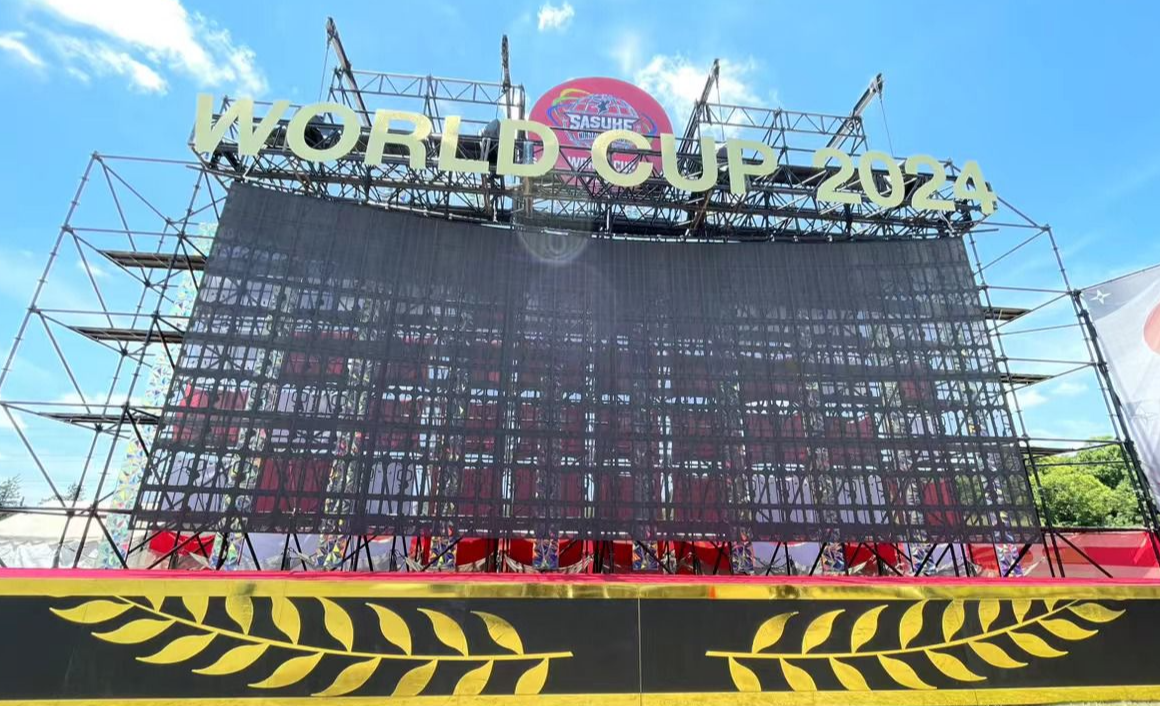

Welcome to the premium Carbon Fiber Frame LED Display solutions by Guangzhou JunChen Display Technology Co., Ltd., where fast installation technology meets outstanding performance. Our product series take carbon fiber as the core advantage, featuring ultra-lightweight, toughness and high efficiency, covering diverse scenarios such as stage performances, window displays, signage, and huge billboards. Whether you are an event planner, advertising operator or construction project party, our LED displays can realize your creative ideas with fast deployment capability and high-quality visual effects.
| Specification | Details |
|---|---|
| Frame Material | Carbon fiber frame (aluminum alloy frame for some series), VO grade fireproof material |
| Pixel Pitch | Multiple specifications including 2.5mm, 2.6mm, 2.85mm, 3.125mm, 3.75mm, 3.91mm, etc. |
| Panel Size | Standard 500×500mm, 400×400mm, 600×337.5mm (16:9 golden ratio), customizable for adaptation |
| Protection Level | IP42 (indoor) to IP67 (severe outdoor environments) |
| Brightness Range | 1000nits (indoor) to 5000nits (outdoor strong light environments) |
| Image Quality | 14-16 bit gray scale, refresh rate 3840Hz-7680Hz, supporting HDR10 Optima & HLG |
| Installation & Maintenance | Front and rear dual maintenance support, flat and concave 15°-convex 10° curved installation |
| Compliance | Meets international general LED display product safety standards |
| Minimum Order Quantity | Customized by series, consult customer service for details |

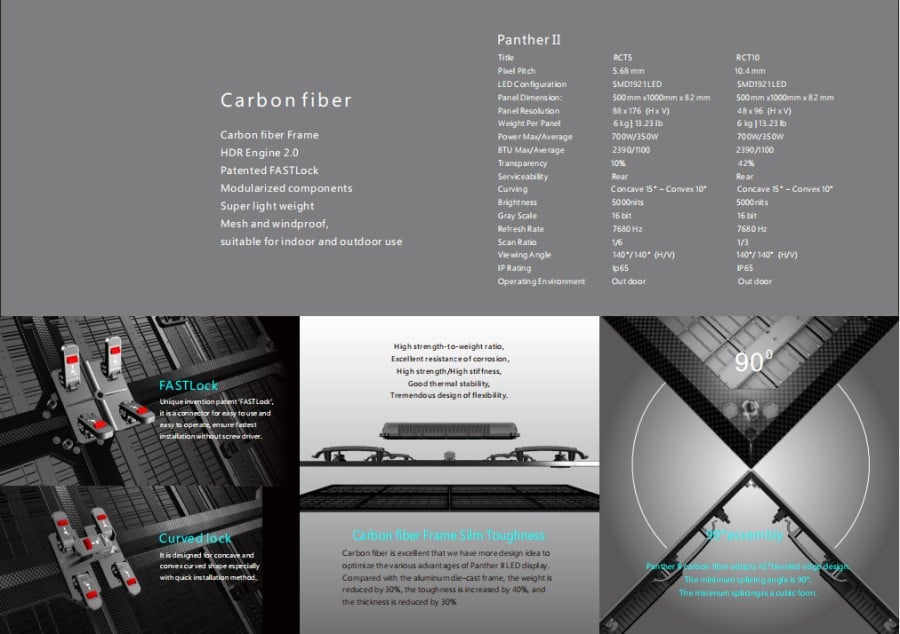

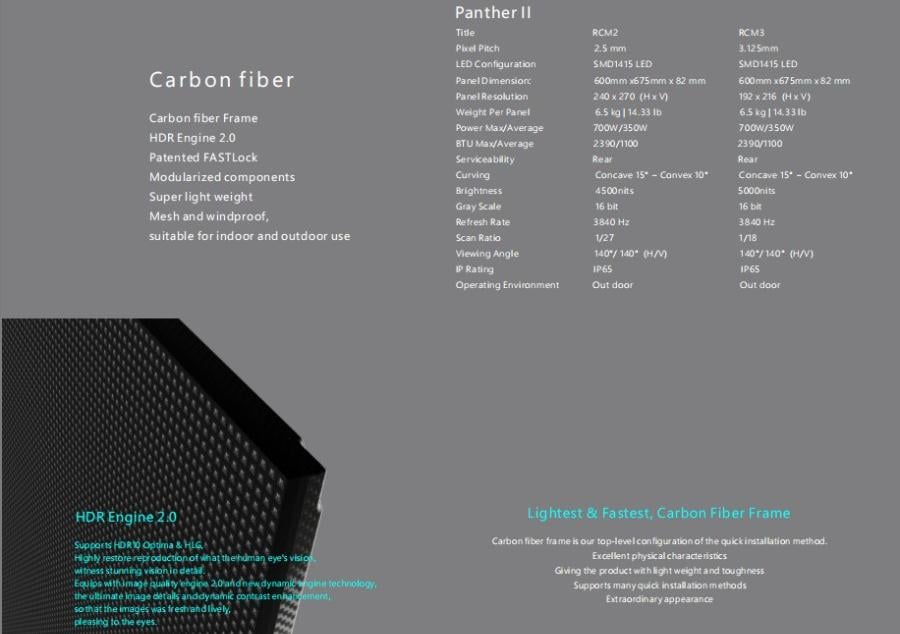

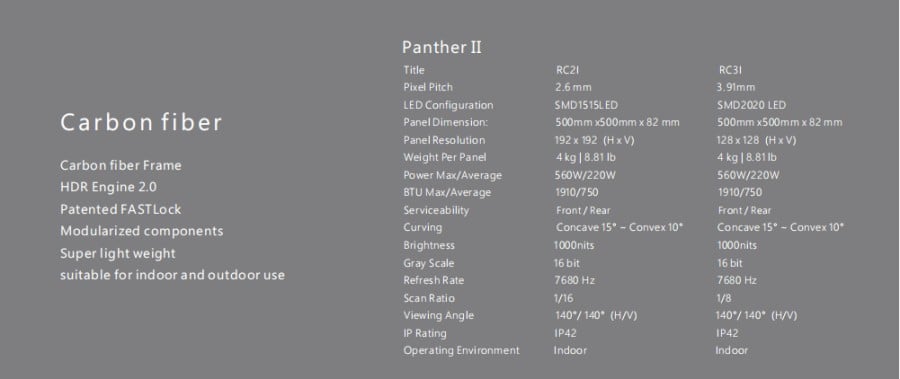

Panther II Series: RCT (P5.68/P7.81), RCM (P2.5/P3.125), RC (P2.6/P3.91)

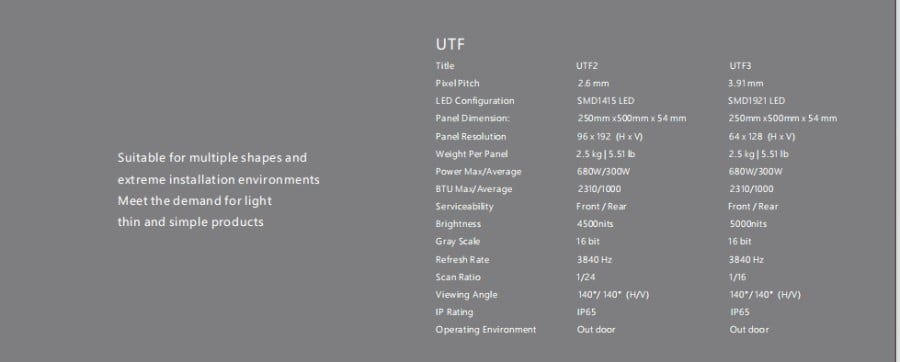

UTF serise:UTF（P2.6/P3.91）

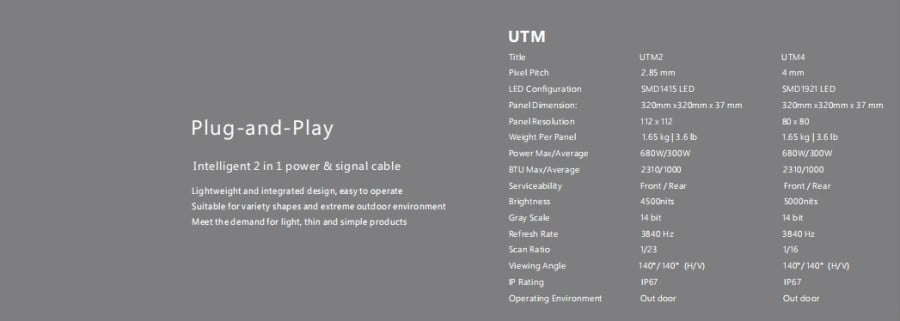

UTM serise:UTM（P2.85/P4/P6.67）

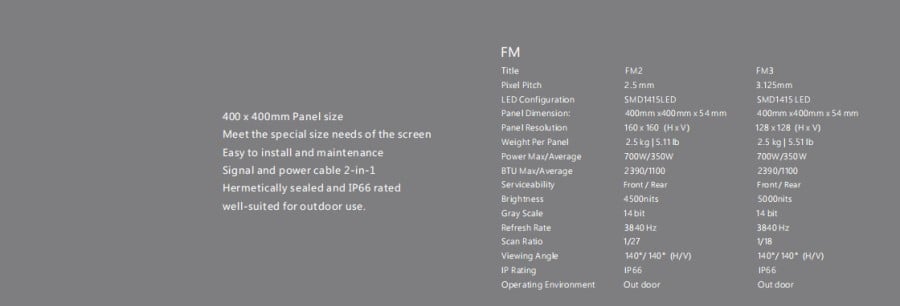

FM Series:FM P2.5 P3.125

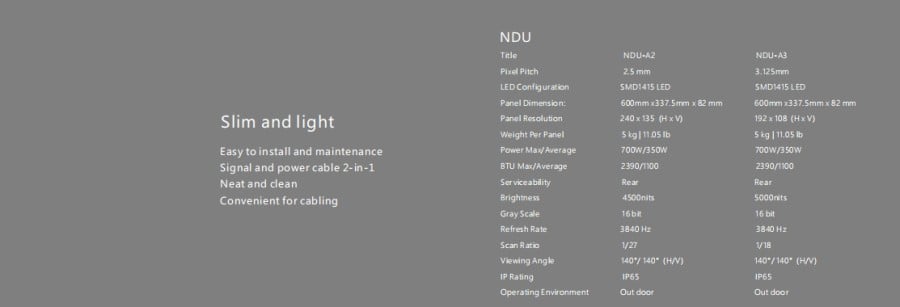

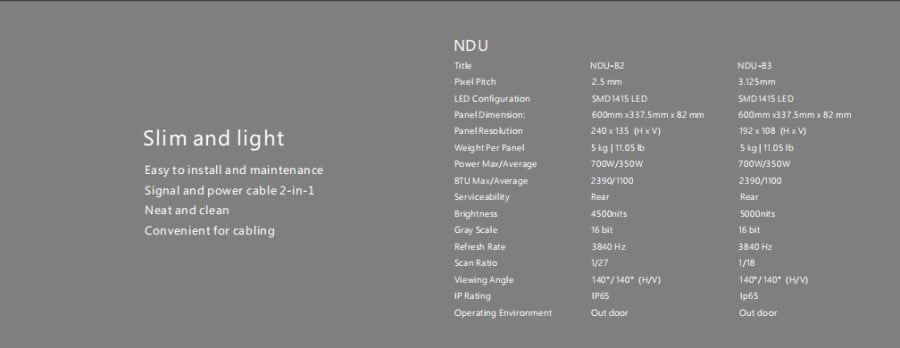

NDU Series:NDU-A P2.5 P3.125/NDU-B P2.5 P3.125

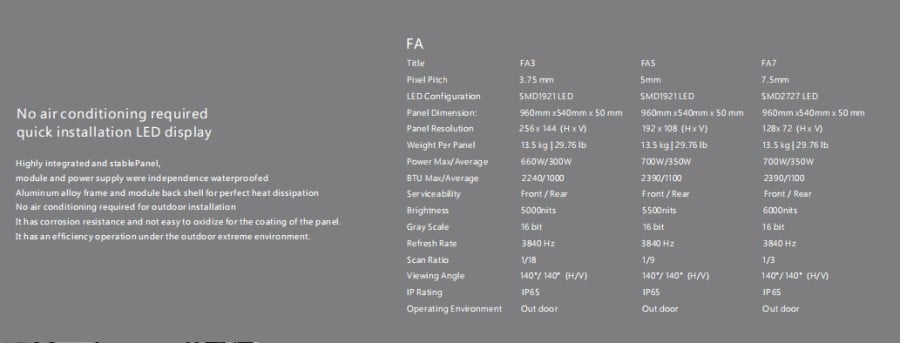

FA Series:FA P3.75 P5 P7.5
Q: Do I need professional tools for product installation?

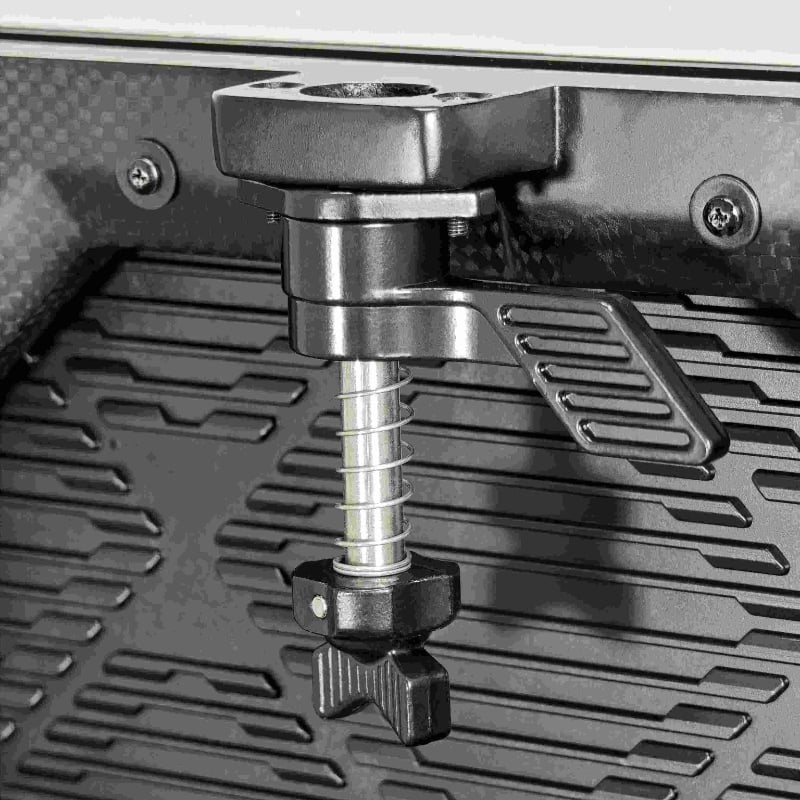

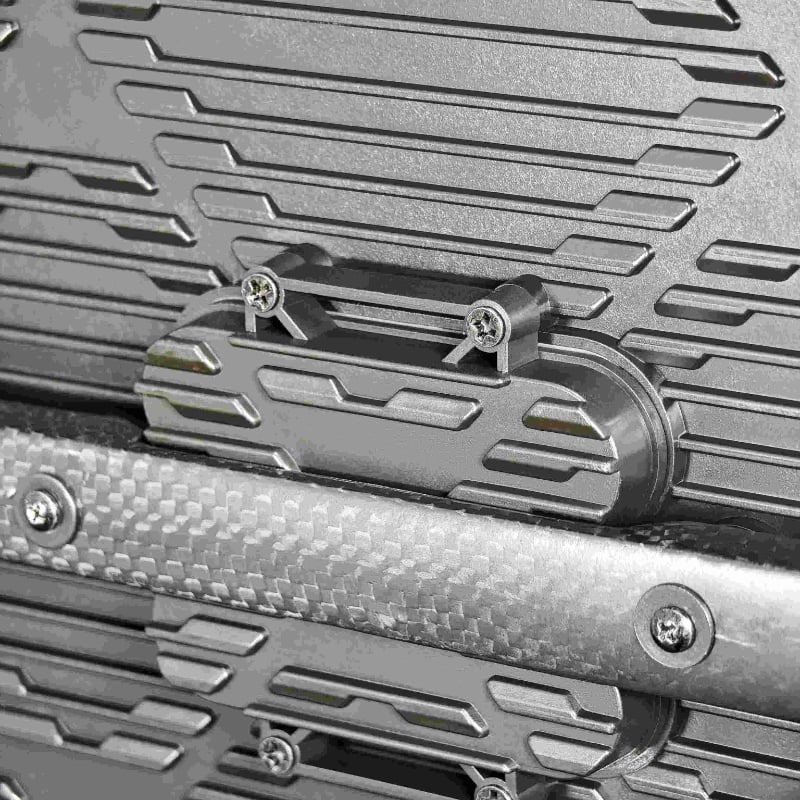

A: No. Equipped with patented FASTLock connector and magnetic module, quick splicing can be completed by hand without professional tools such as screwdrivers.
Q: Can it be used in outdoor high-temperature and rainy environments?
A: Yes. Some series have protection levels up to IP66-IP67, adopting double-sided potting waterproof modules and efficient heat dissipation design, which can resist severe environments such as high temperature, heavy rain and high humidity.
Q: Does the product support custom special sizes or curved display?
A: Yes. Custom panel sizes are available, and the whole series supports concave 15°-convex 10° curved installation to meet special creative display needs.
Q: Is maintenance convenient?
A: Very convenient. All series support front and rear dual maintenance, and modular components can be disassembled and replaced individually without large-scale removal of the display screen.
Q: How to choose the right series for different scenarios?

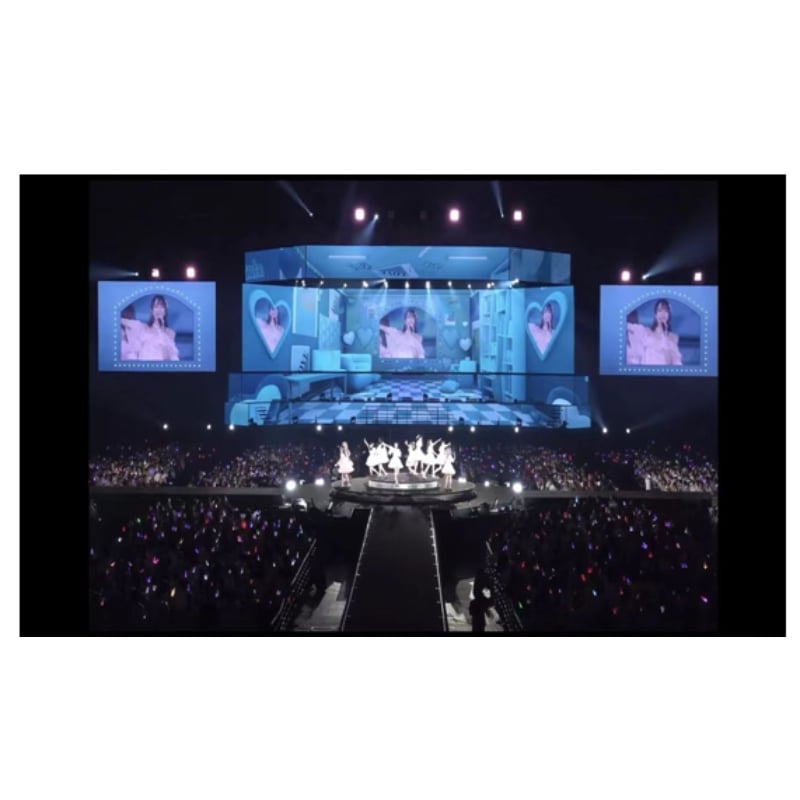

A: Choose Panther II series for stage scenarios, UTF/UTM series for window displays, NDU series for small signage, FA series for large outdoor billboards, FM series for general indoor and outdoor advertising, or consult customer service for accurate recommendations.
Ready to upgrade your display solution with high-efficiency carbon fiber frame LED displays? Contact us today for a free consultation and quote, and our professional team will provide you with full support.
Company Name: Guangzhou JunChen Display Technology Co., Ltd.
Address: Yagang Middle Road, ShiMen Street, Baiyun District, Guangzhou City, Guangdong Province, China
Tel/WhatsApp: +86 188 1890 1997
Website: www.jcdisplay.com
Use our high-performance carbon fiber frame LED displays to make creativity land quickly — where efficiency and quality go hand in hand.
