The wor ld 's first th ird-generat ion COB d isp lay technology , LED d isp lay panel has higher protect ion performance , higher rel iabi l ity , higher contrast , better p icture qual ity , more flexib le and conven ientsp l icing method and higher environmental adaptabi l ity , which are widely used in indoor real ist ic scenes.

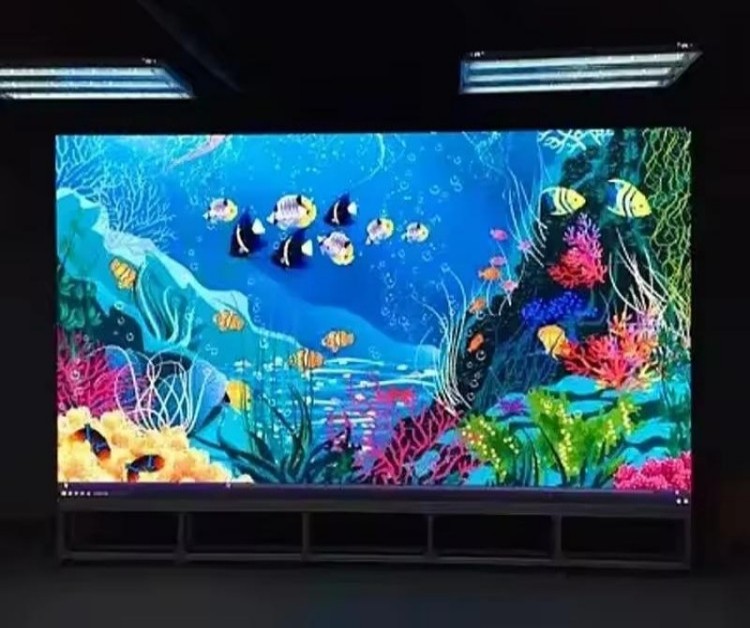

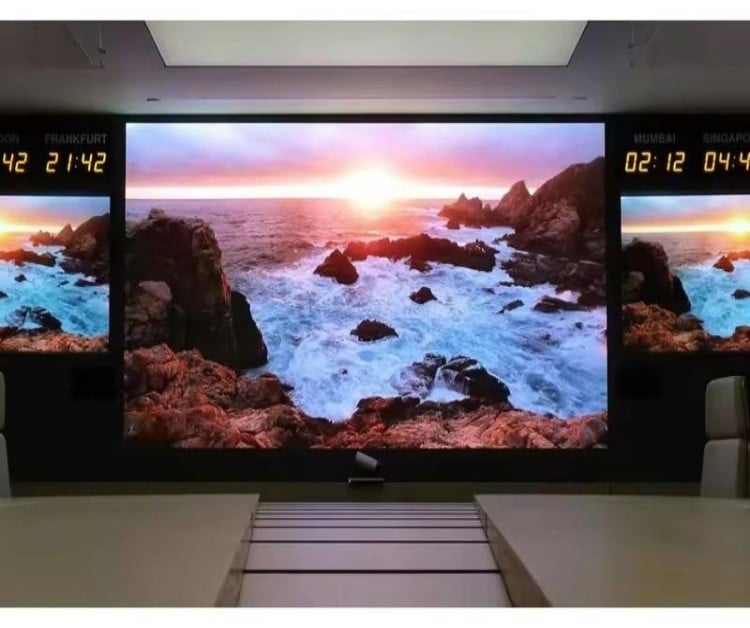

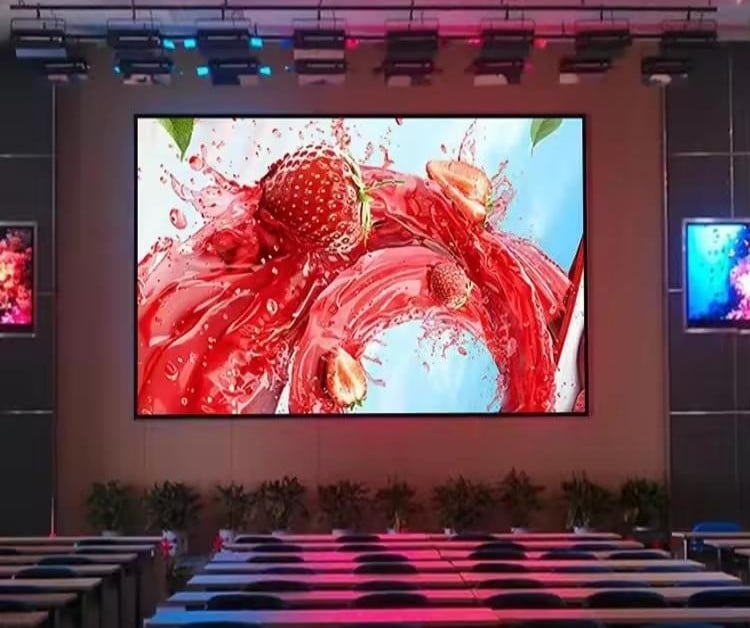

COB small-p itch LED d isp lay is main ly used in below scenes :

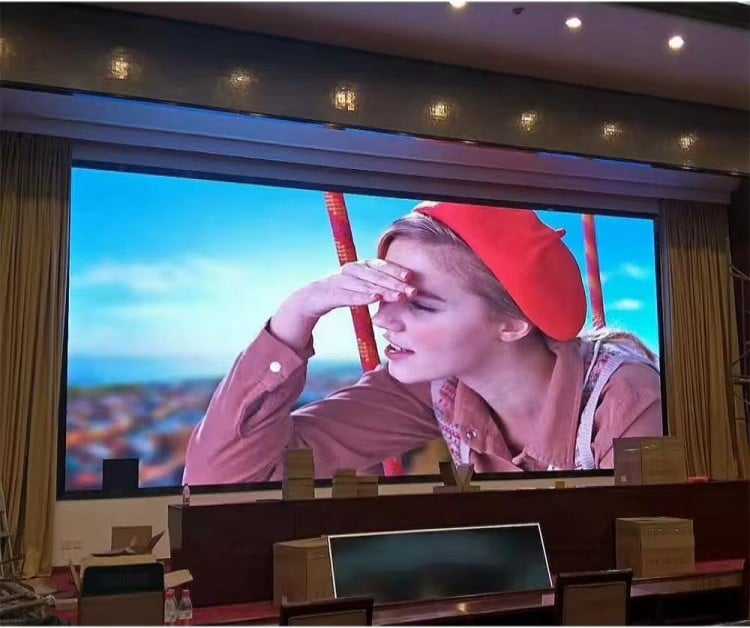

1.studio hall
2.security Monitoring Center

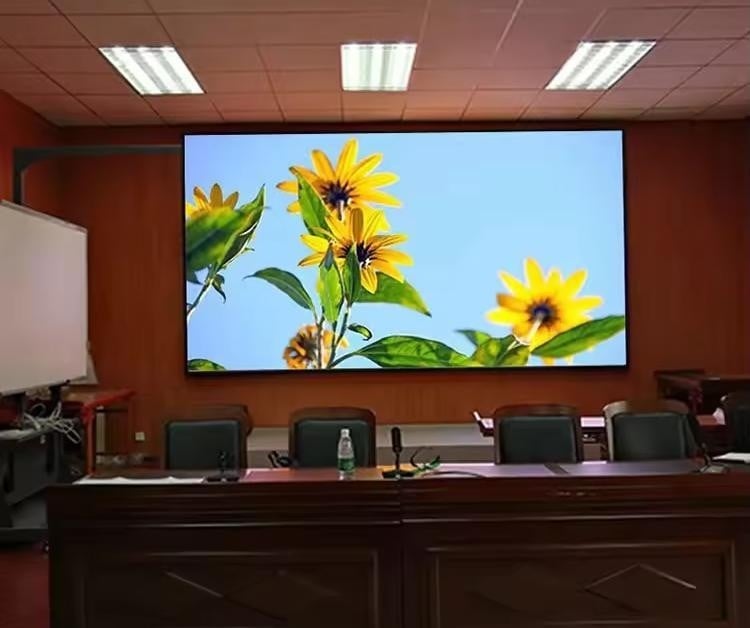

3.conference Room
4.command center
5.Others scenes

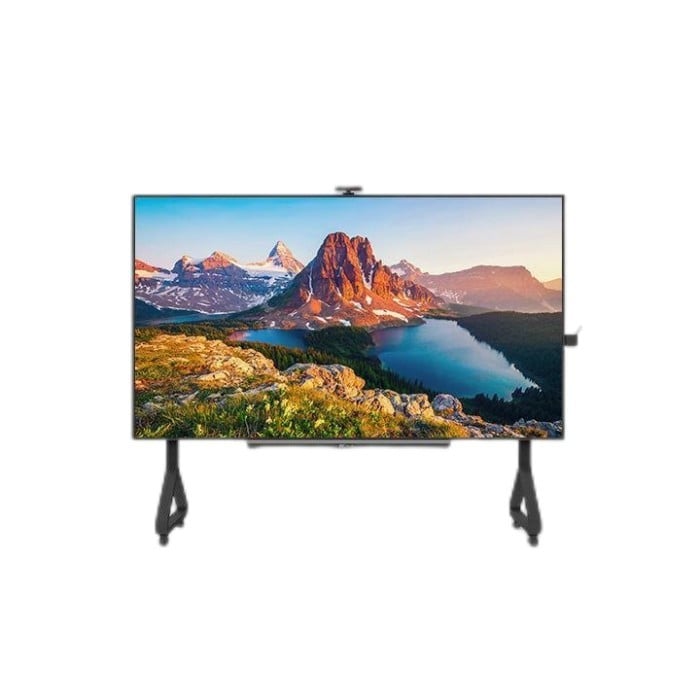

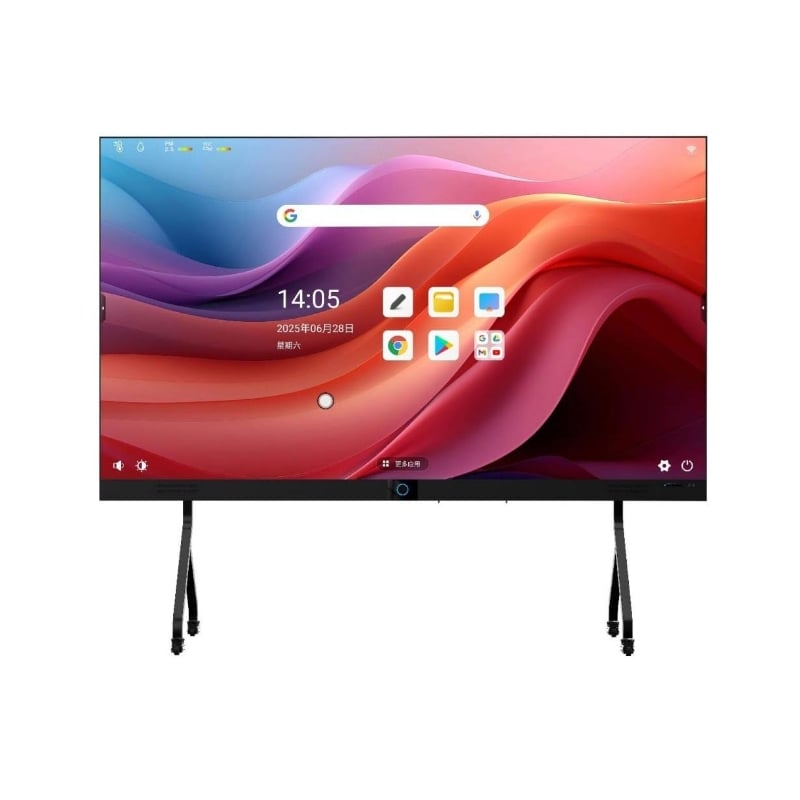

Integrated Design, Simple yet Extraordinary.
108-inch, 135-inch and 163-inch options are available.

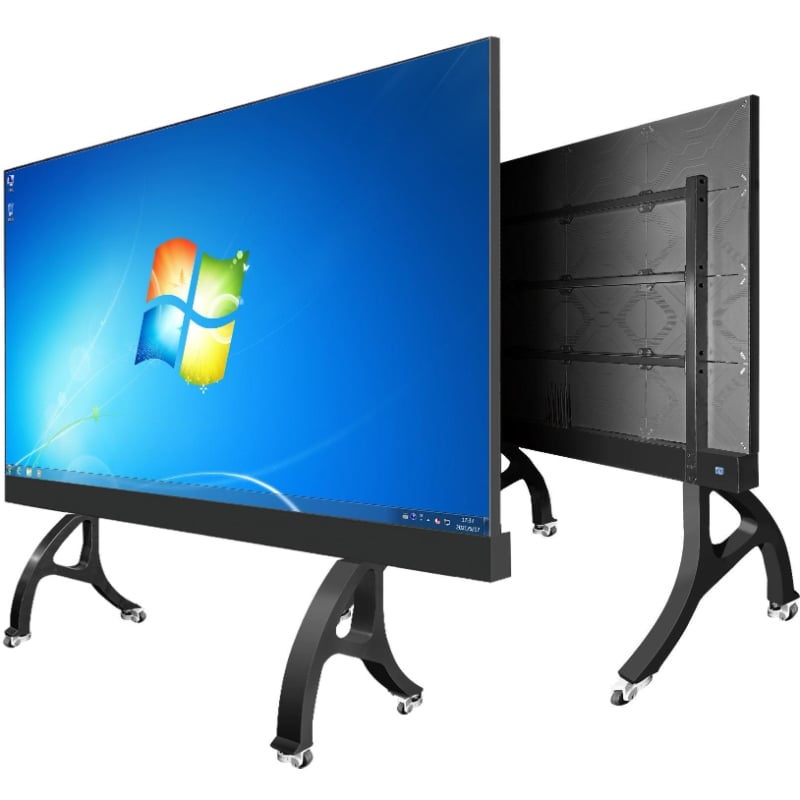

The whole machine integrates the control module, intelligent system and audio, and can be used immediately after being turned on. It features an ultra-narrow and ultra-thin structure that saves space, 2K ultra-clear resolution and a 16:9 golden ratio.
It supports wireless screen projection and remote control, and is suitable for various scenarios such as conference rooms, exhibition halls, home theaters and multimedia classrooms.

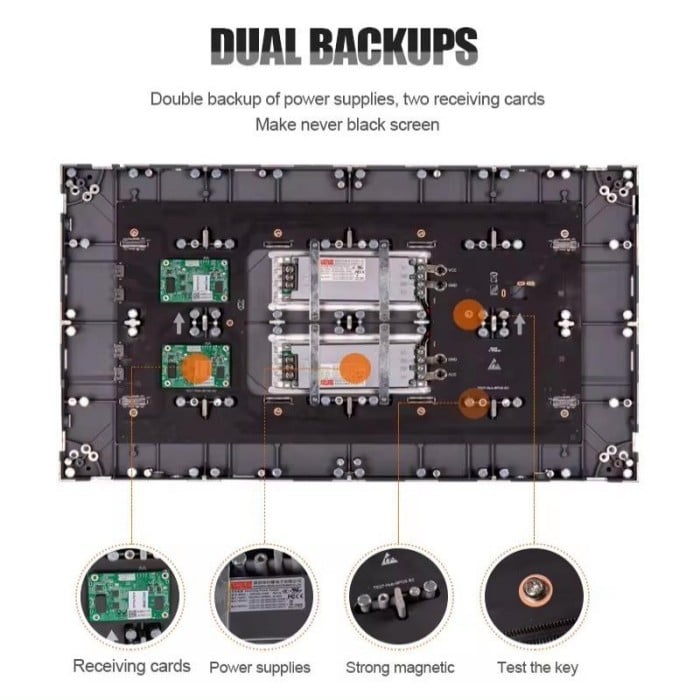

Double backup of power supplies and two receiving cards ensure the screen never goes black.

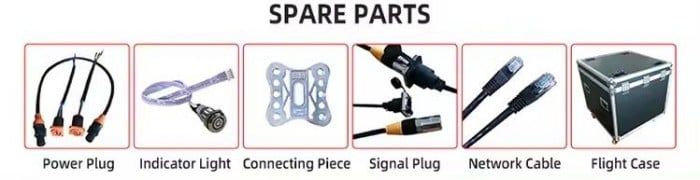

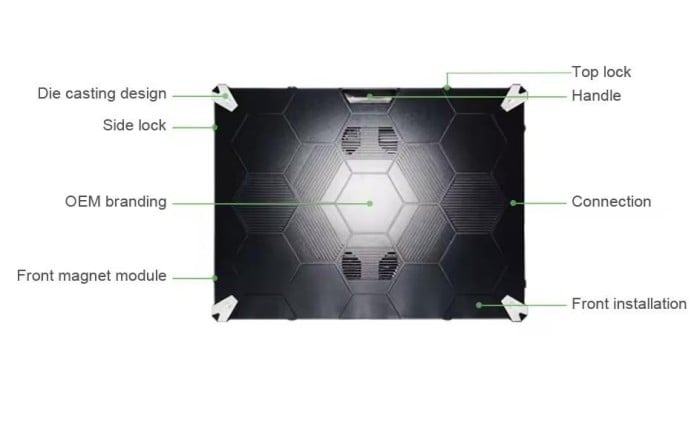

Power Plug, Indicator Light, Connecting Piece, Signal Plug, Network Cable, Flight Case, Receiving Cards, Power Supplies, Strong Magnetic, Test Key.
 |
 |
 |
| Items | P0.93 | P1.25 | P1.56 |
|---|---|---|---|
| Module size | 150 x 168.75mm | ||
| Pixel resolution | 160 x 180 | 120 x 135 | 96 x 108 |
| Scan mode | 54S | 60S | 54S |
| Lamp surface process | Mute surface, surface hardness 4H | ||
| Display unit size | V168-35B: 600 x 675 x 39.5mm / V168-27B: 600 x 337.5 x 39.5mm | ||
| Unit weight | 7.9kg (35 inch 600 x 675) / approx. 4kg (27 inch 600 x 337.5) | ||
| Cell resolution | 640 x 720 / 640 x 360 | 480 x 540 / 480 x 270 | 384 x 432 / 384 x 216 |
| Density (pixels/m2) | 1137777 dots/m2 | 640000 dots/m2 | 409600 dots/m2 |
| Circuit scheme | Constant-current / shared anode circuit, flash correction storage | ||
| Control system | Nova Star | ||
| White balance brightness | 600 cd/m2 (standard) | ||
| Refresh rate | 3840Hz | ||
| Contrast ratio | 10000:1 (without ambient light) | ||
| Colour temperature | 9300K (standard) | ||
| Viewing angle | 160° | ||
| Max power (600nit) | 150W (600x675) / 75W (600x337.5) | 130W (600x675) / 65W (600x337.5) | 130W (600x675) / 65W (600x337.5) |
| Maintenance mode | Front service | ||
| LED life | 100,000 hours | ||
| IP protection level | IP54 (surface) | ||
| Supply voltage | AC 100~240V 50/60Hz | ||
| Operating temperature | -10°C to +40°C | ||
| Operating humidity | 10%RH to 90%RH | ||
| Storage temp & humidity | -20°C to +60°C / 10%RH to 90%RH | ||
| Attestation | 3C, EMC CLASS-A, ROHS, energy conservation | ||
| NO. | Item | 108" | 135" | 163" |
|---|---|---|---|---|
| Display Parameters | Pixel Pitch (mm) | 1.25 | 1.5625 | 1.875 |
| Display Size | 108" (16:9) | 136" (16:9) | 163" (16:9) | |
| Screen Display Size (mm) | 2400 x 1350 | 3000 x 1687.5 | 3600 x 2025 | |
| Resolution (px) | 1920 x 1080 | |||
| Color Bits (bit) | 14 | |||
| Refresh Rate (Hz) | 3840 | |||
| Contrast Ratio | 10000:1 (COB) | |||
| Brightness (nits) | 100-600 Adjustable | |||
| Viewing Angle (V/H) | 170 / 170 | |||
| Driving Method | Constant Current Driving | |||
| Frame Rate (Hz) | 50 / 60 | |||
| Machine Parameters | Wall Hanging Size (mm) | 2414 x 1468 | 3014 x 1806 | 3614 x 2143 |
| Machine Size (mm) | 2414 x 2168 | 3014 x 2505 | 3614 x 2843 | |
| Machine Weight (kg) | 70 (Wall) / 105 (Bracket) | 107 (Wall) / 165 (Bracket) | 150 (Wall) / 220 (Bracket) | |
| Input Voltage | AC100-240V, 50-60Hz | |||
| Average Power (W) | 400 | 650 | 850 | |
| Maximum Power (W) | 1100 | 1800 | 2600 | |
| Installation Method | Wall-mounted / Mobile Bracket | |||
| Viewing Distance | ≥1.2m | ≥1.5m | ≥1.8m | |
| Use Space | 20~40 sqm | 40~60 sqm | 60~90 sqm | |
| Operating Temperature | -10°C to +40°C | |||
| Storage Temperature | -20°C to +45°C | |||
| Operating Humidity | 10%RH to 75%RH | |||
| Storage Humidity | 10%RH to 65%RH | |||
| System Parameters | OS | Android 11 | ||
| Processor | 1.8G main frequency, 64-bit quad-core processor | |||
| GPU | Mali G52 | |||
| RAM | 4G (LPDDR4) | |||
| ROM | 32GB | |||
| Windows 11 (OPS optional) | Intel Processor (optional) / Up to 64GB RAM / 128GB-2TB ROM | |||
| Loudspeaker Power | 2 x 12W | |||
| Camera (optional) | POLY STUDIO E70 | |||
