JunChen Display Mobile LED Trailer Screens

JunChen Display Mobile LED Trailer Screens With a design philosophy of "Scenario-based Customization + Full-Dimensional Coverage," JunChen Display builds a complete product matrix ranging from small portable units to large flagship models. We provide high-definition, flexible, and reliable mobile visual solutions for commercial promotions, cultural/sports events, traffic engineering, and other fields, serving as a core vehicle for brand communication and information delivery.

Core Product Series

一.Small Portable Series

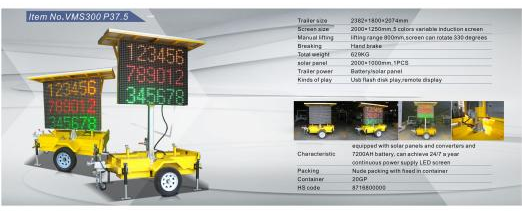

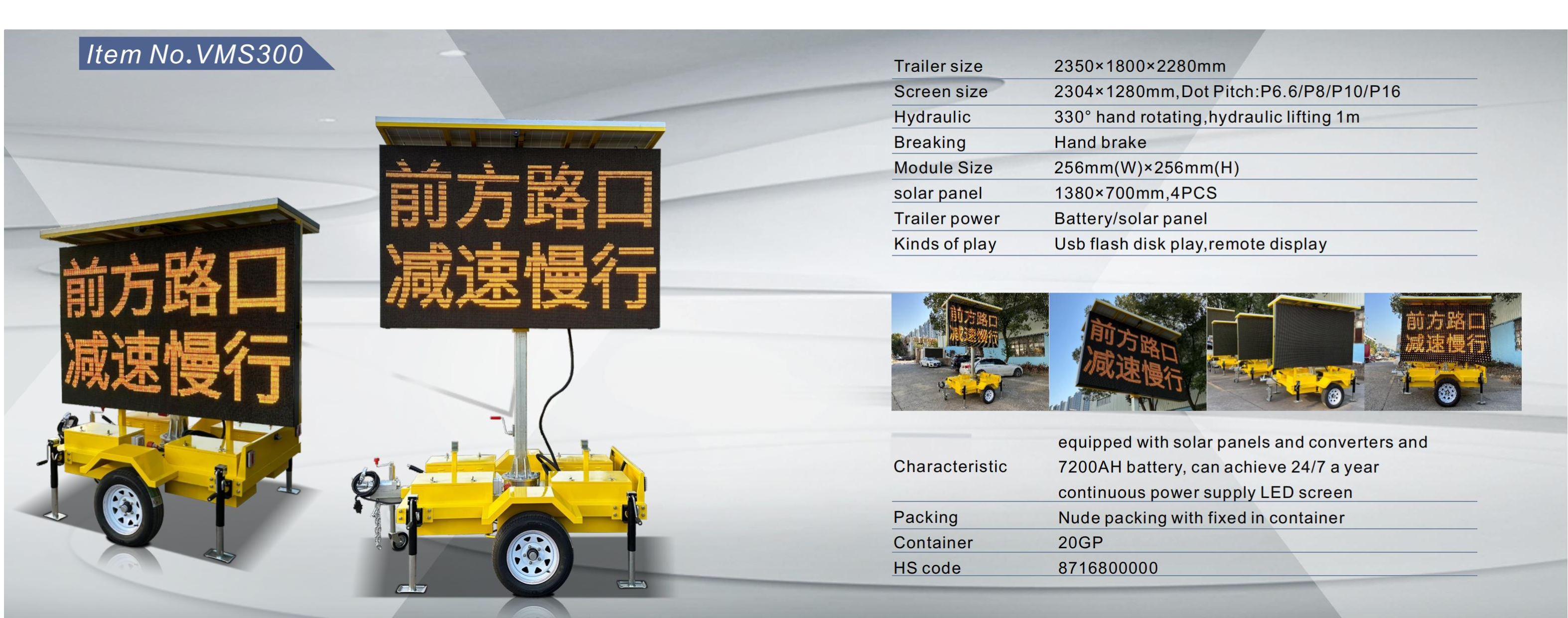

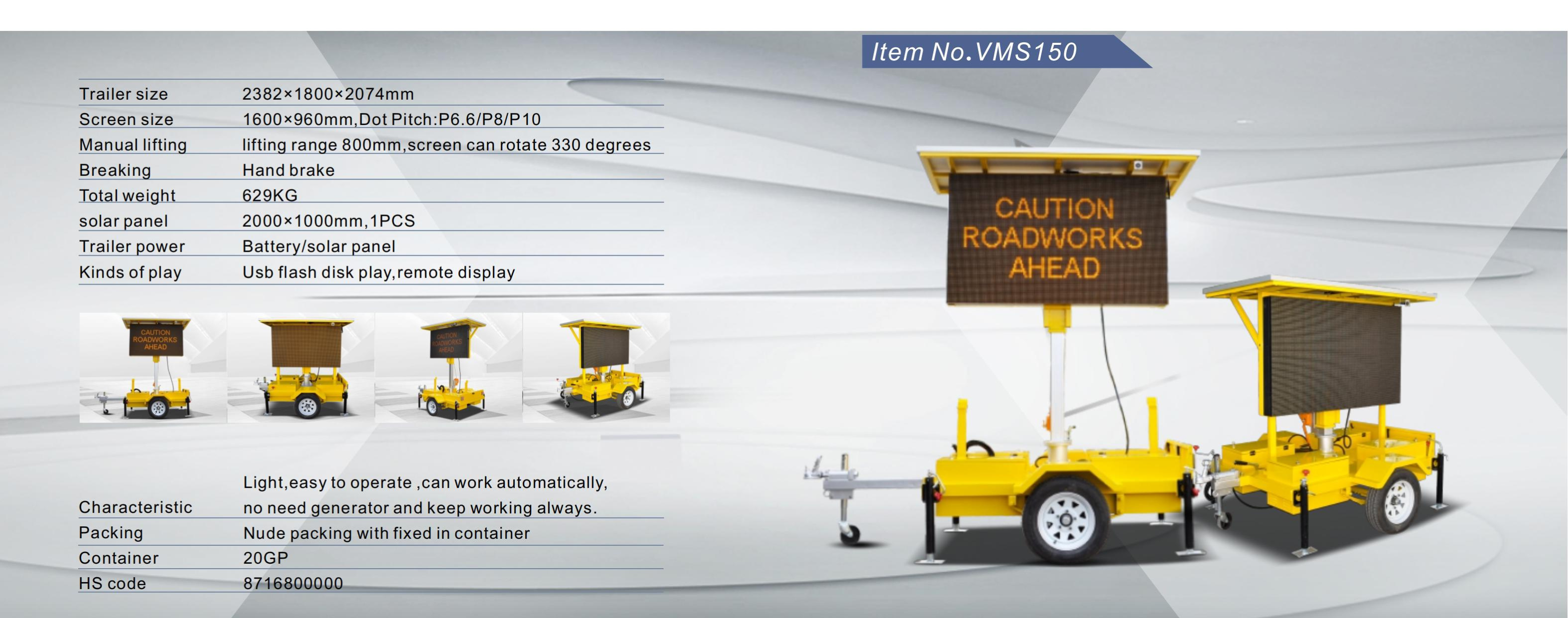

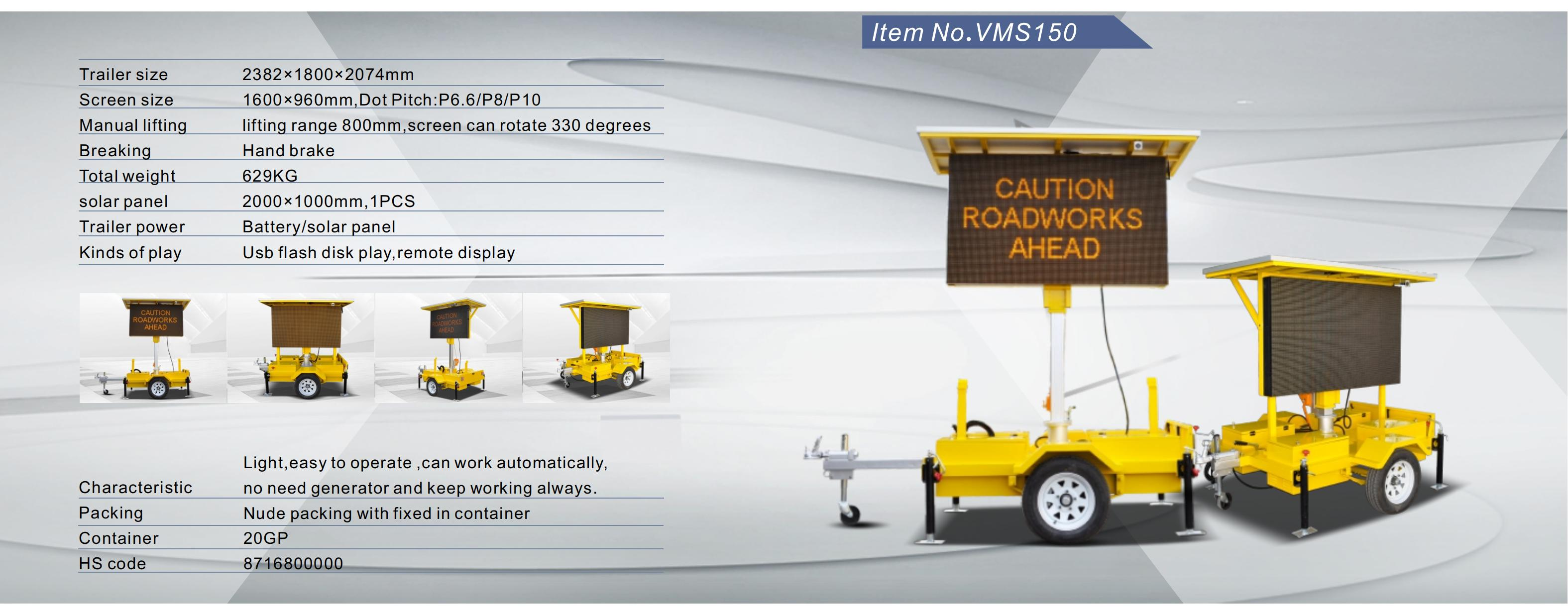

1.Traffic Warning Series (VMS Series)

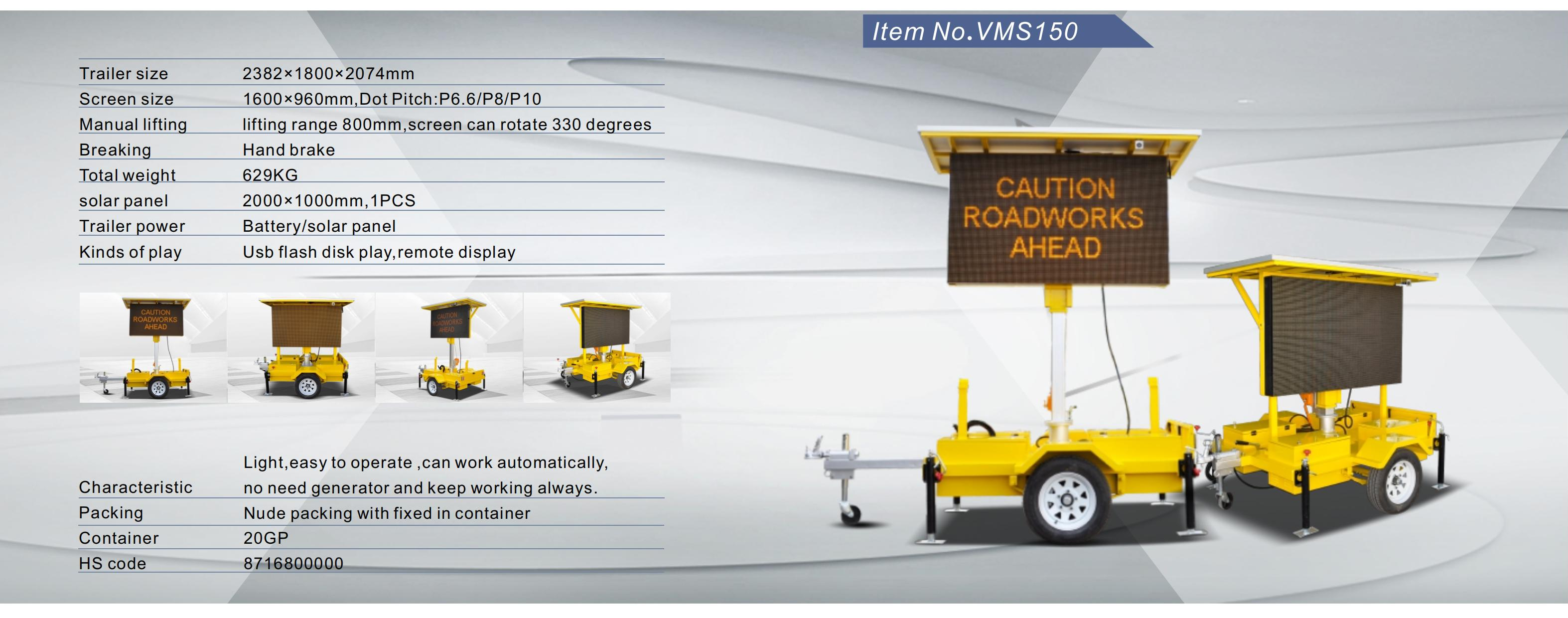

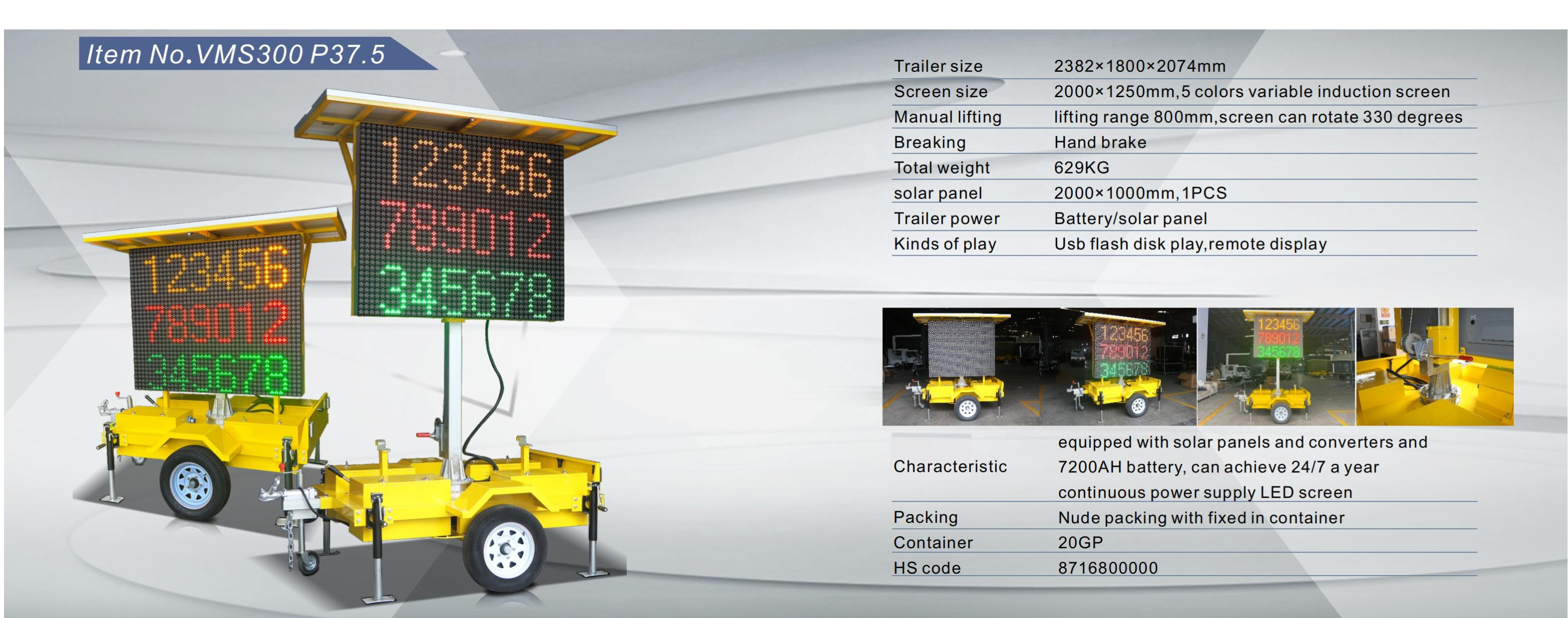

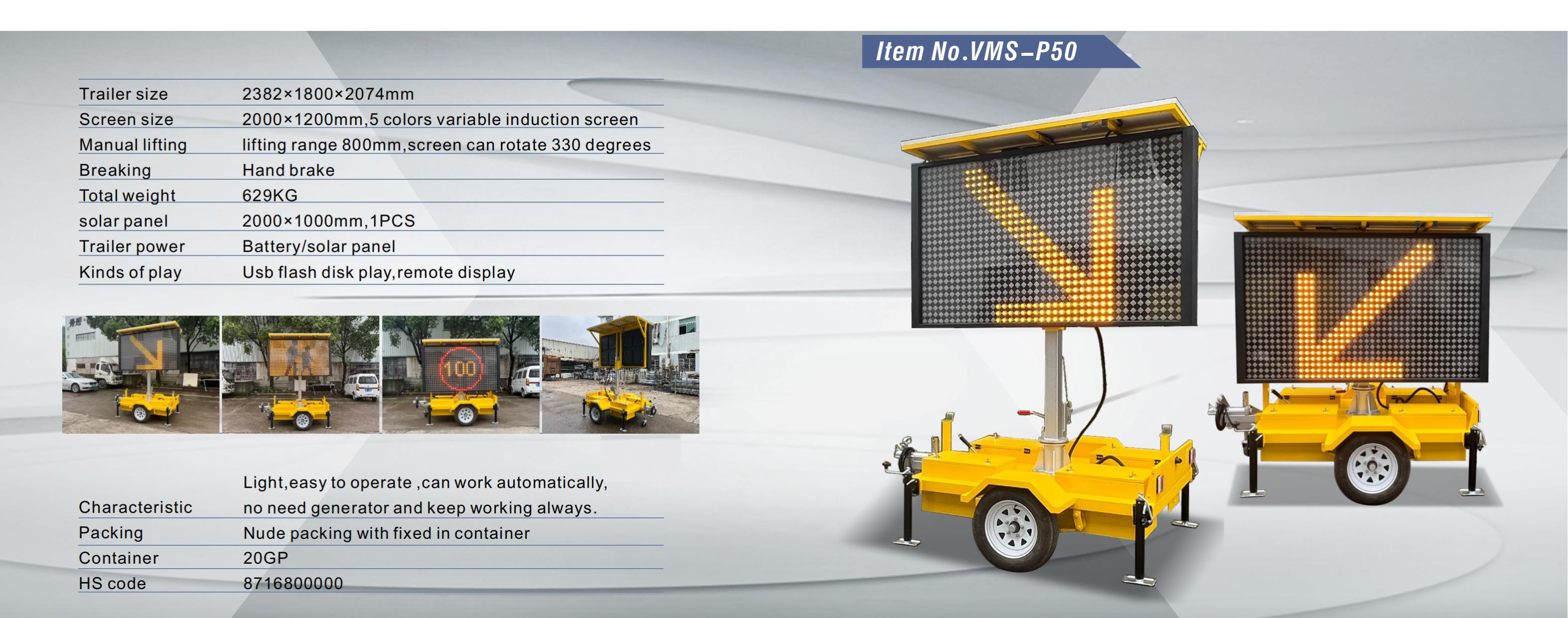

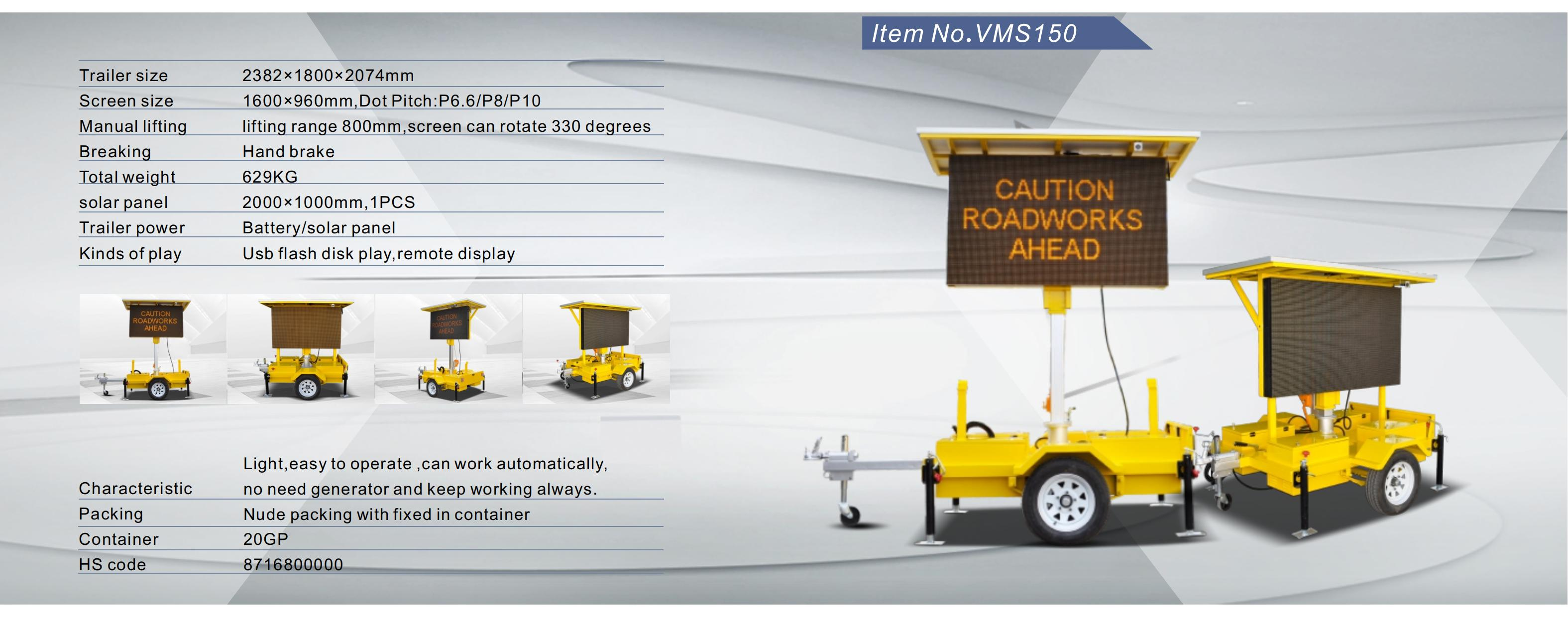

Representative Models: VMS150, VMS300, VMS-P50, VMS300 P37.5

Specifications:

• Screen Size: Up to 2000×1250mm (VMS300 P37.5), Pixel Pitch P6.6/P8/P10/P37.5 optional
• Power Configuration: Solar panel + high-capacity battery (e.g., VMS300 equipped with 7200AH battery), enabling 24/7 continuous operation
• Mechanical Performance: Manual lifting (800mm range), 330° screen rotation, handbrake system
• Key Features: Distinctive yellow exterior, suitable for road construction and traffic control scenarios, capable of displaying warnings like "Road Work Ahead" and "Slow Down"; IP65 protection rating, reliably withstands harsh outdoor environments.

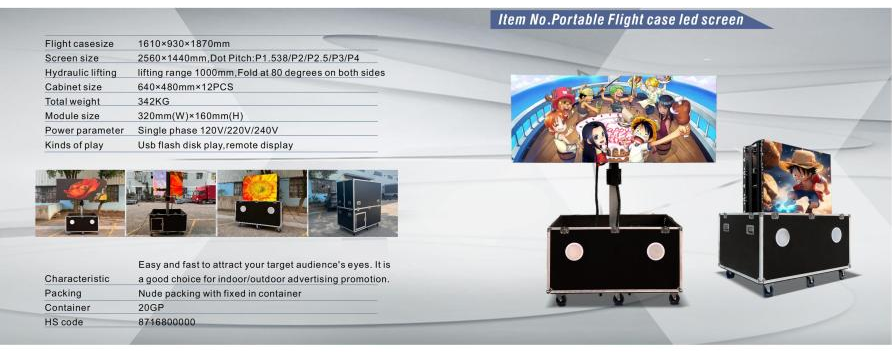

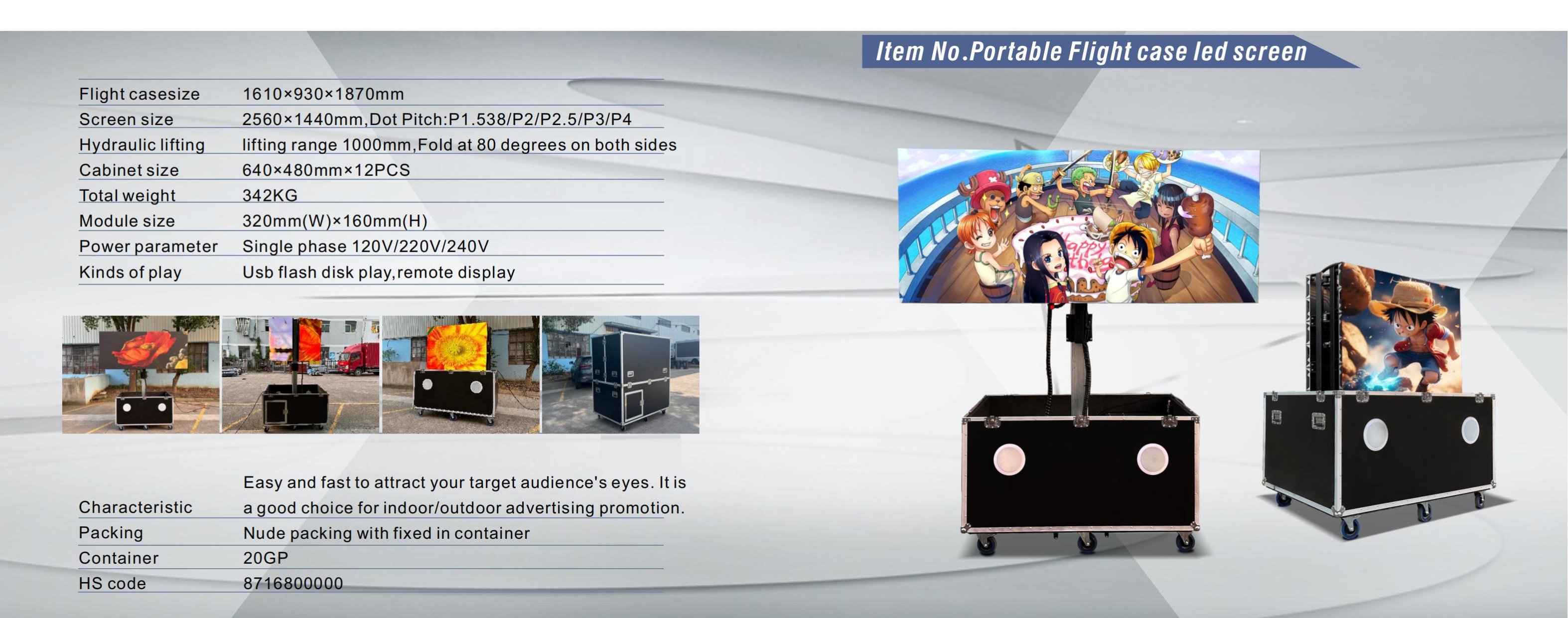

2.Portable Flight case led screen

Specifications:

• Screen Size: 2560×1440mm, Pixel Pitch P1.538/P2/P2.5/P3/P4 optional
• Structure Design: Flight case integration (Dimensions: 1610×930×1870mm), built with 12 pieces of 640×480mm cabinets
• Power Configuration: Single-phase 120V/220V/240V mains power supply
• Key Features: Hydraulic lifting (1000mm range), 80° bilateral screen folding, setup/dismantling completed by a single person in 5 minutes; suitable for pop-up scenarios like exhibitions and community events.

二. Medium Universal Series

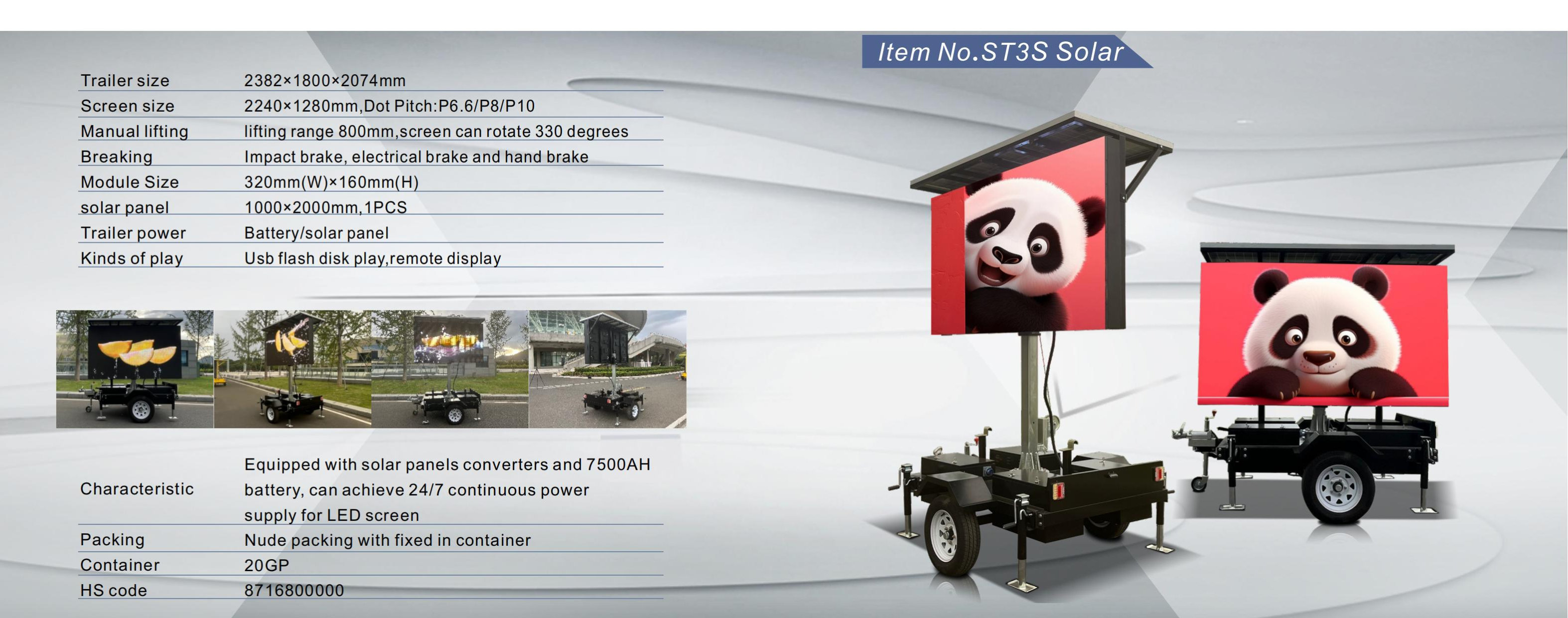

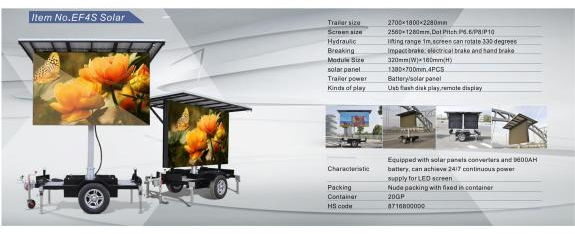

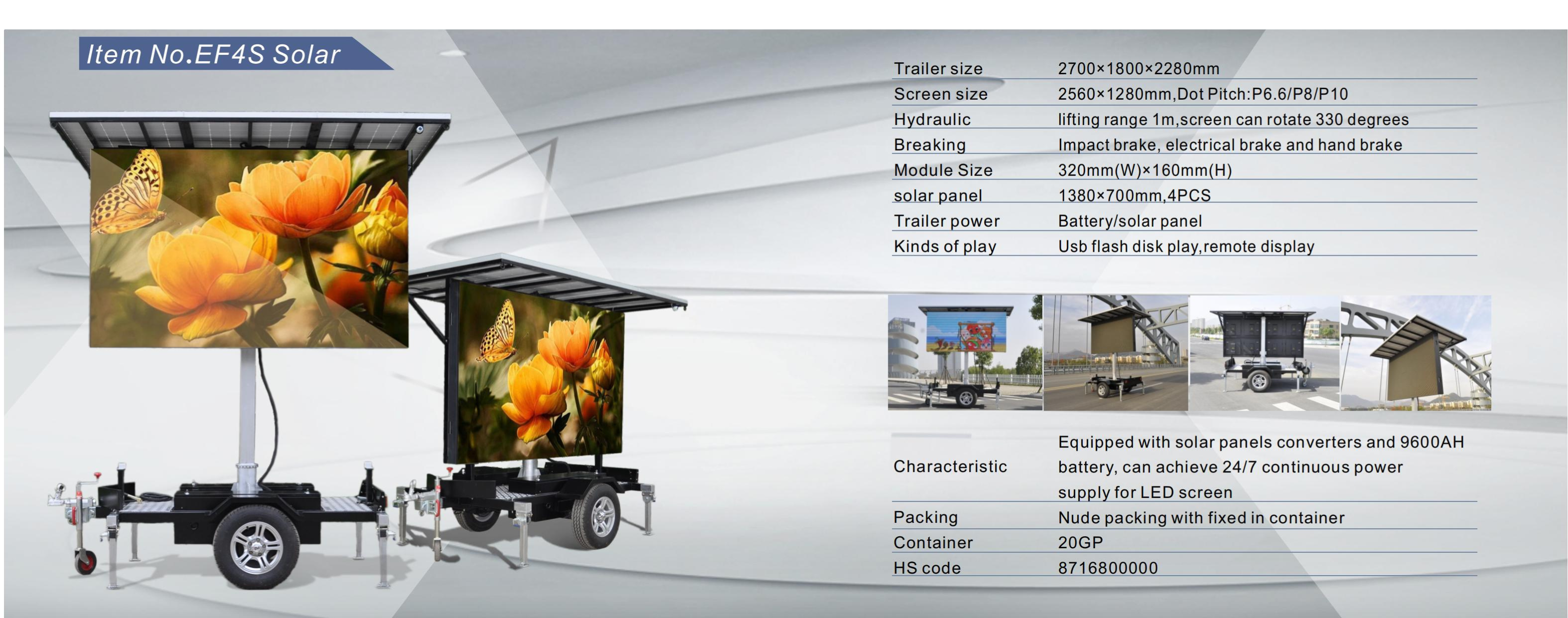

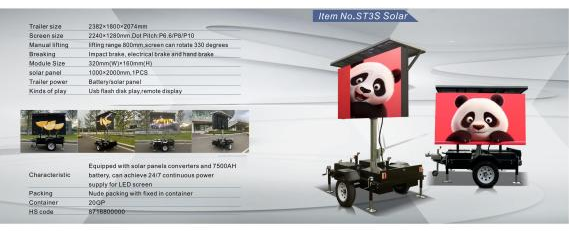

1.Solar-Powered Type (ST3S Solar, EF4S Solar)

Representative Models: ST3S Solar, EF4S Solar

Specifications:

• Screen Size: ST3S Solar: 2240×1280mm, EF4S Solar: 2560×1280mm
• Pixel Pitch: P6.6/P8/P10
• Power Configuration: ST3S Solar includes 1x 1000×2000mm solar panel, EF4S Solar includes 4x 1380×700mm solar panels, paired with batteries for continuous operation.
• Mechanical Performance: ST3S Solar manual lifting (800mm range), EF4S Solar hydraulic lifting (1m range), both support 330° rotation
• Key Features: Stable operation in scenarios without mains power, suitable for remote area events, outdoor market promotions.

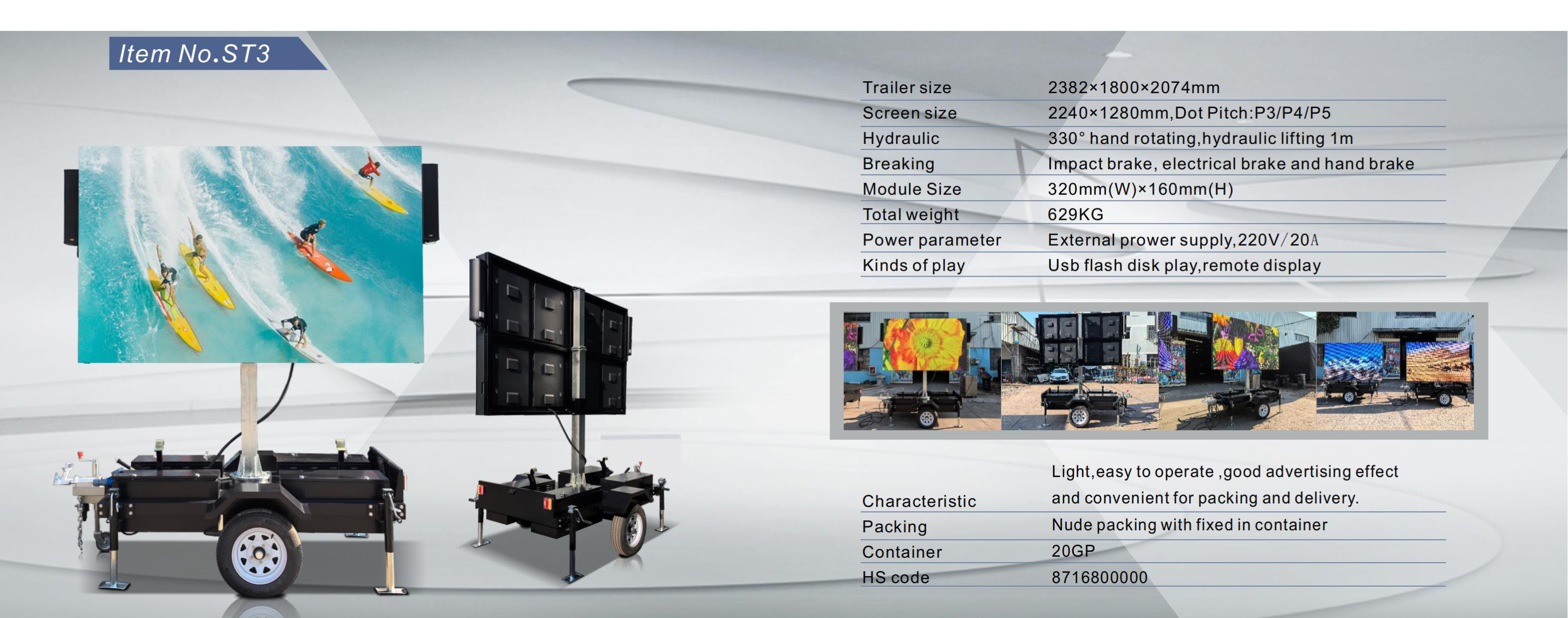

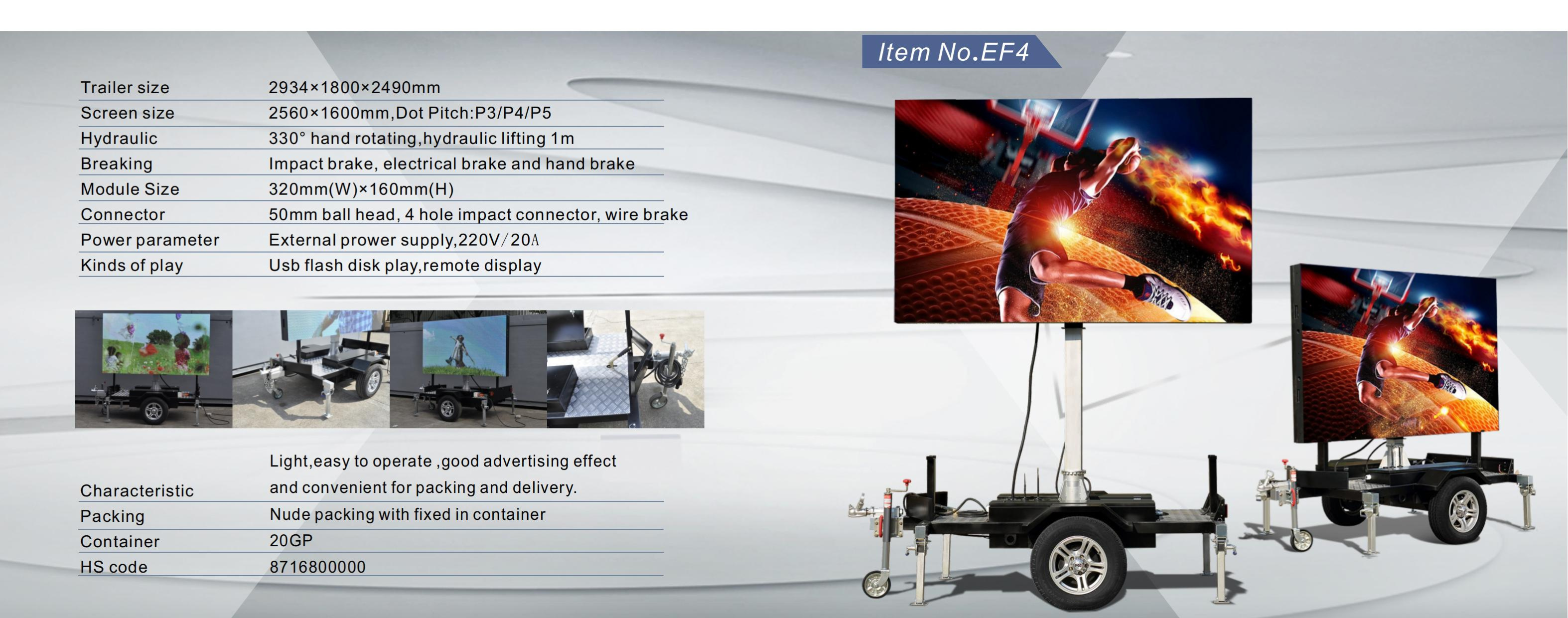

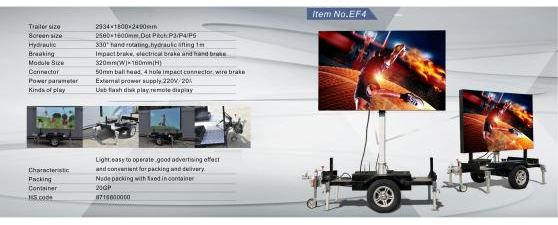

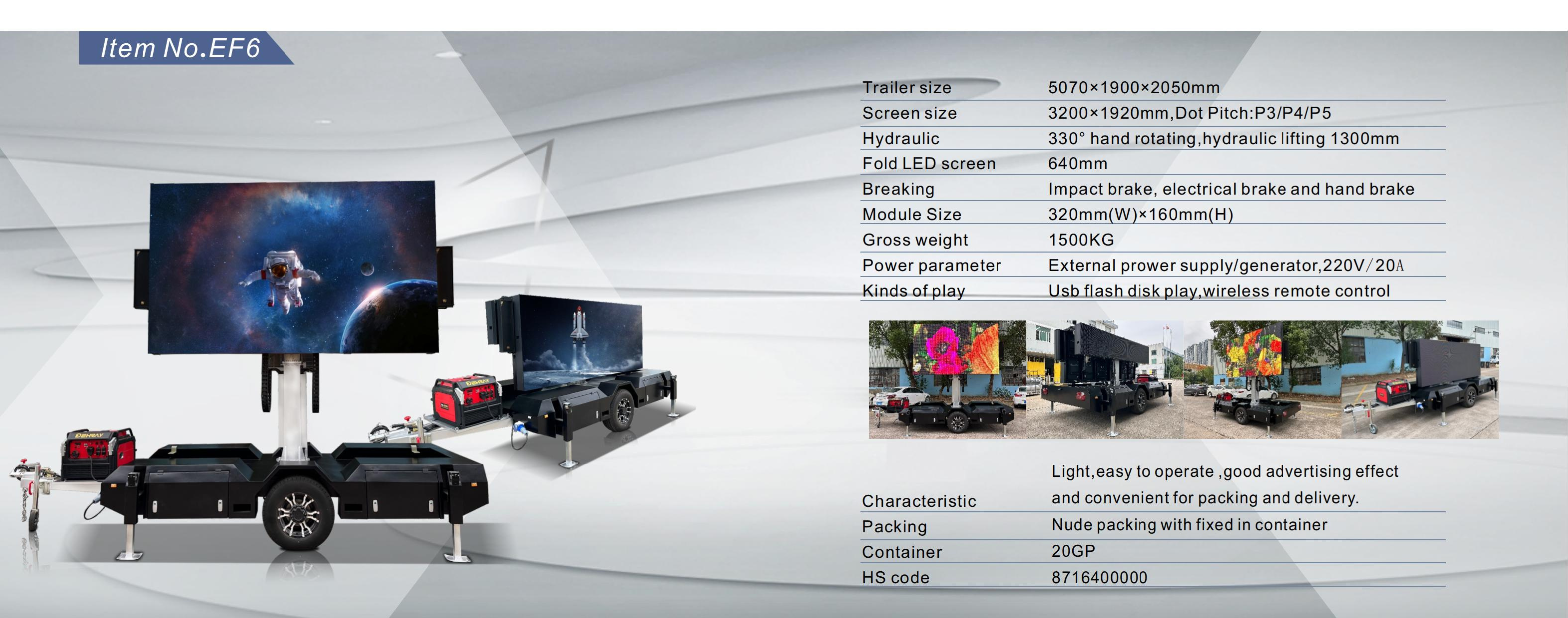

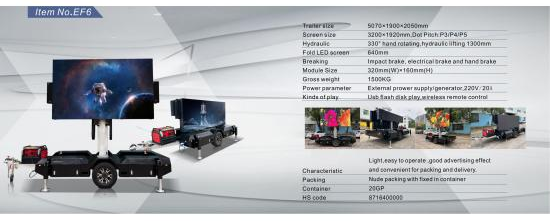

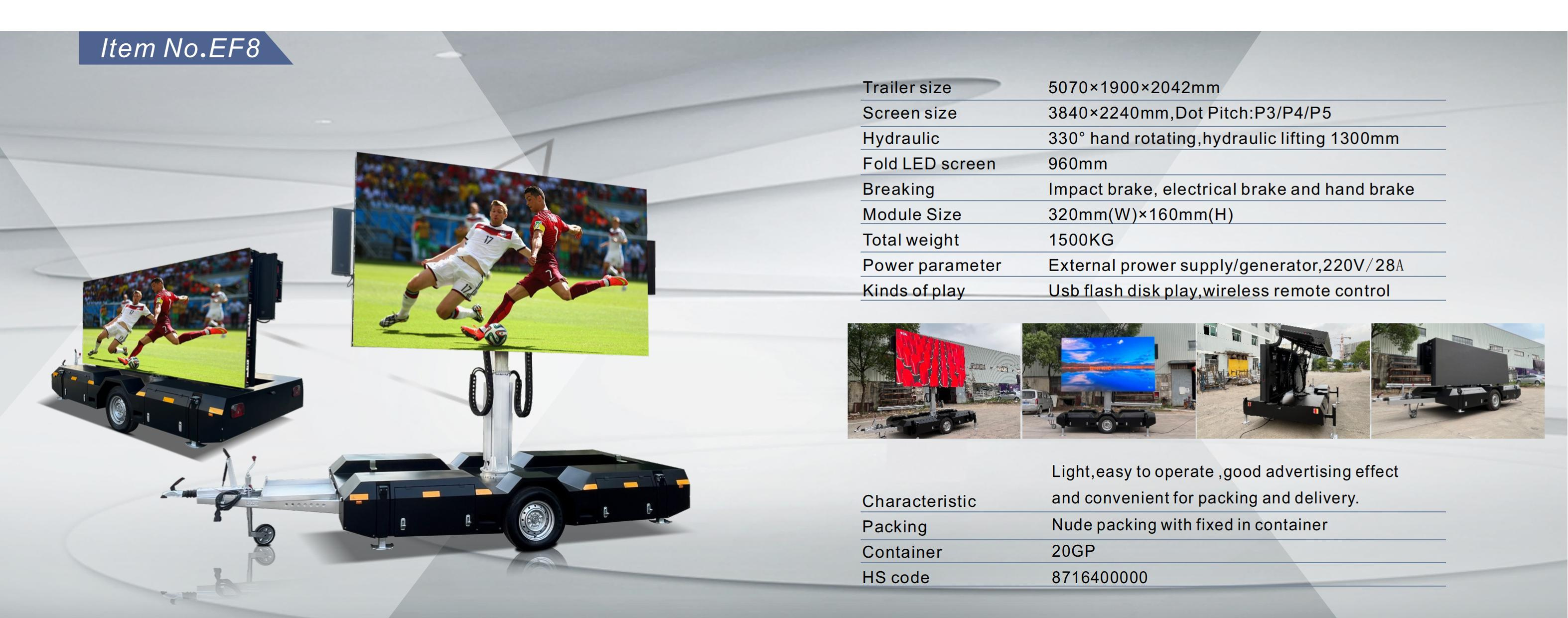

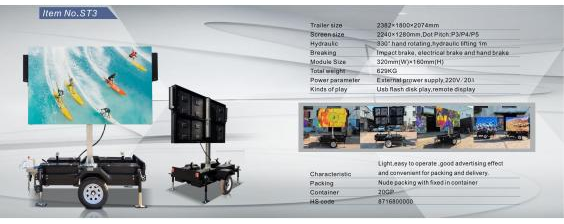

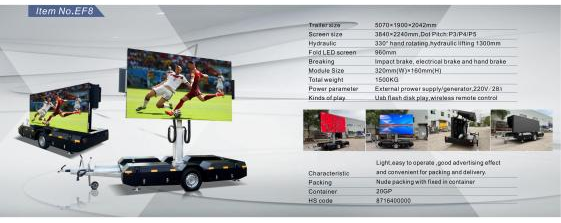

2.Mains-Powered Type (EF4, EF6, EF8, ST3)

Representative Models: EF4, EF6, EF8, ST3

Specifications:

• Screen Size: 3.2 - 8.6 ㎡ (e.g., EF8: 3840×2240mm)
• Pixel Pitch: P3/P4/P5
• Mechanical Performance: Hydraulic lifting (1 - 1.3m range), 330° rotation, triple braking system (impact + electronic + handbrake)
• Power Configuration: External mains power (220V/380V), some models support optional silent generators
• Key Features: EF8NE model includes built-in energy storage battery, supporting short-term off-grid operation; high-definition quality suitable for commercial roadshows, medium/small-scale event live broadcasts.

三. Large Flagship Series

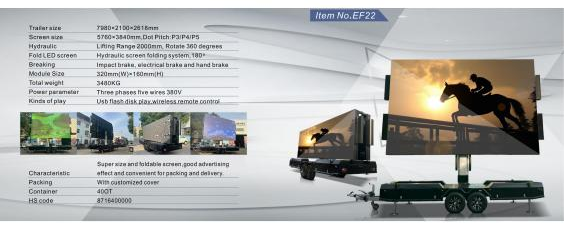

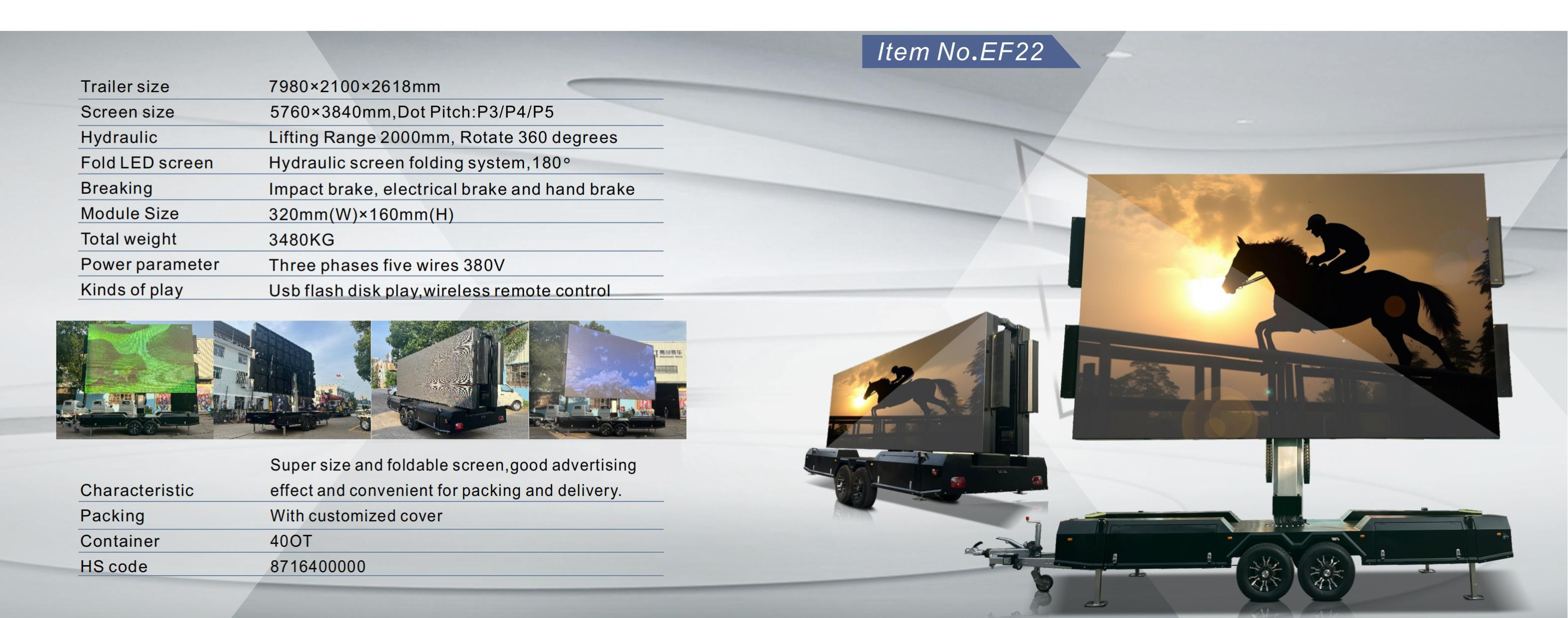

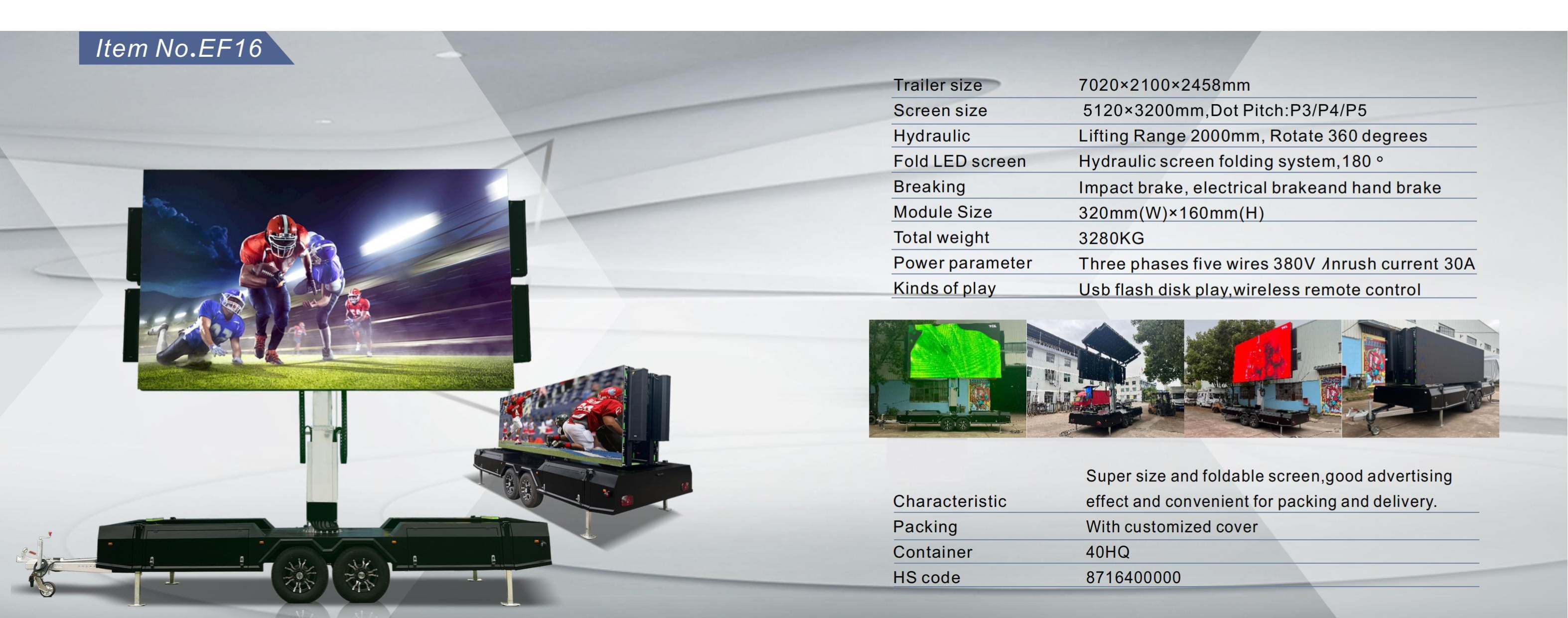

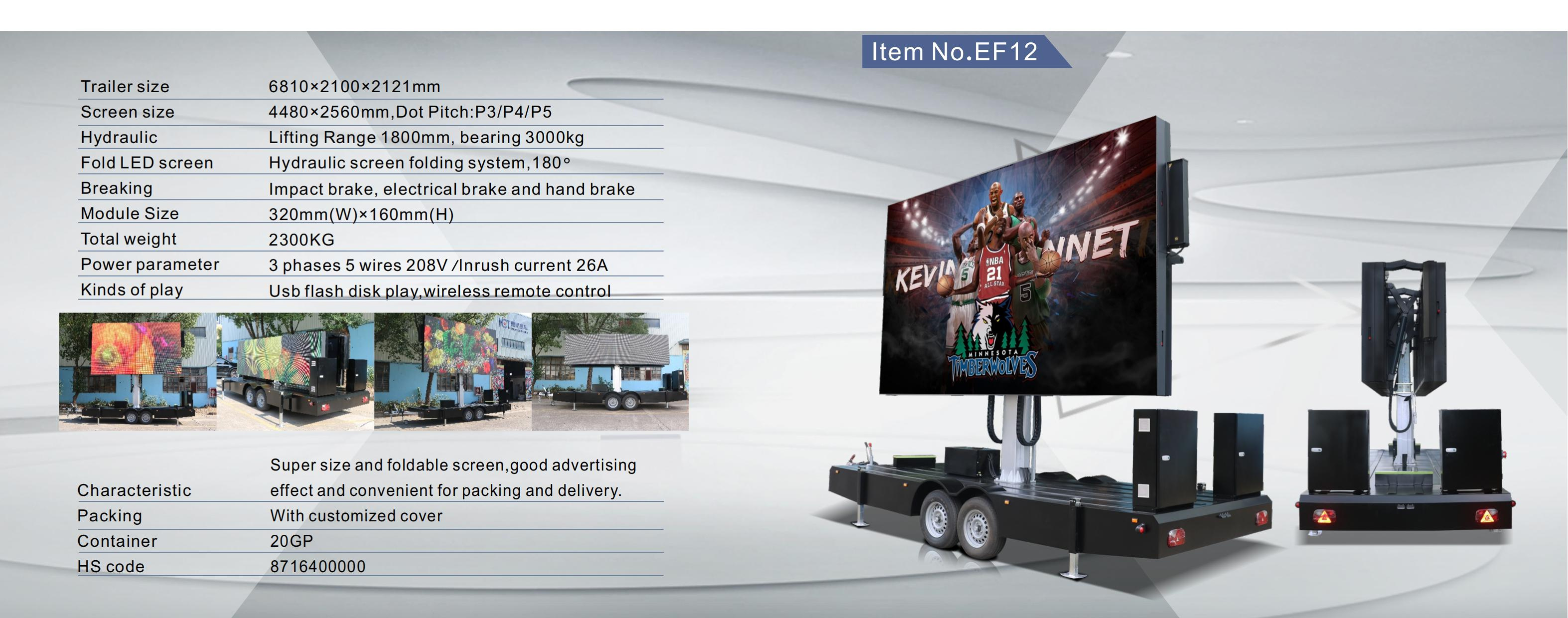

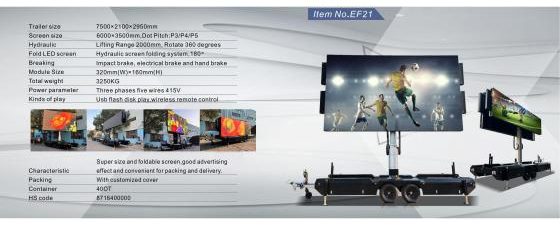

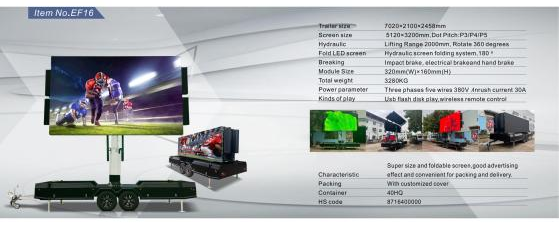

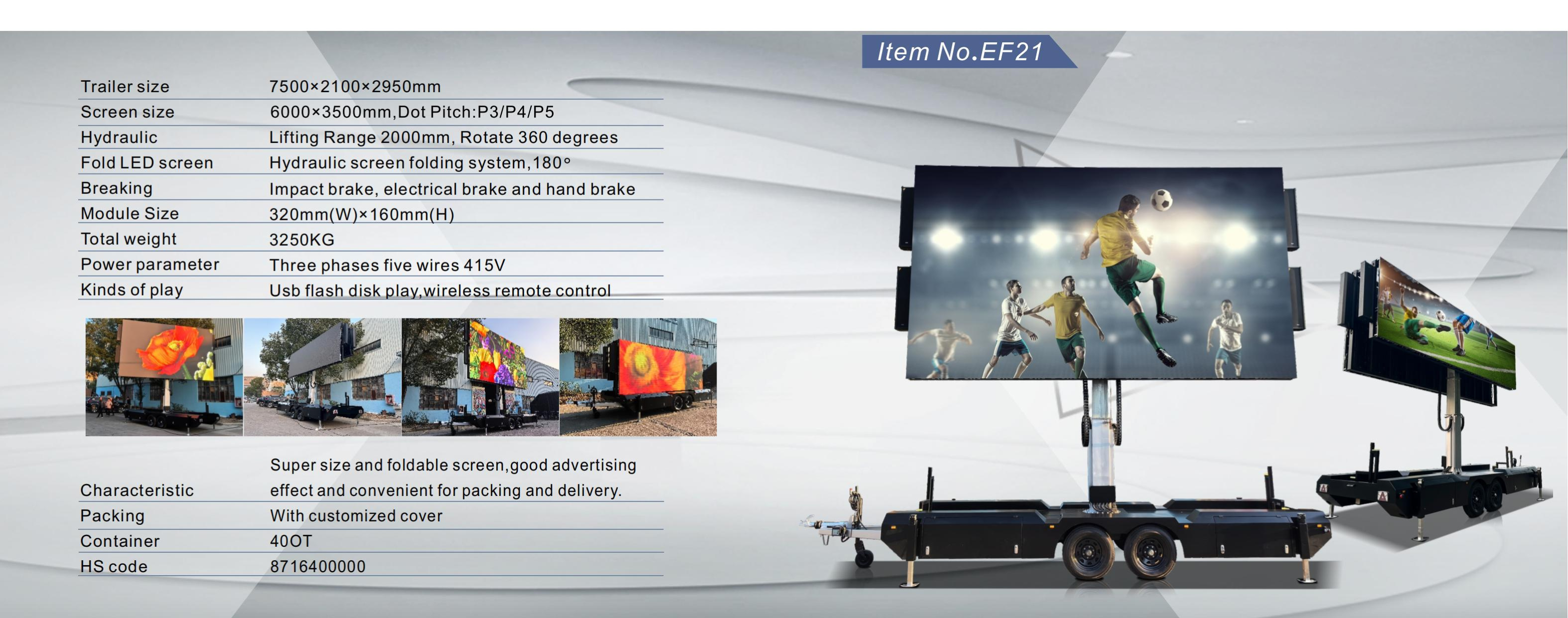

1.Folding Screen Type (EF21, EF12, EF16, EF22, EF26)

Representative Models: EF21, EF12, EF16, EF22, EF26

Specifications:

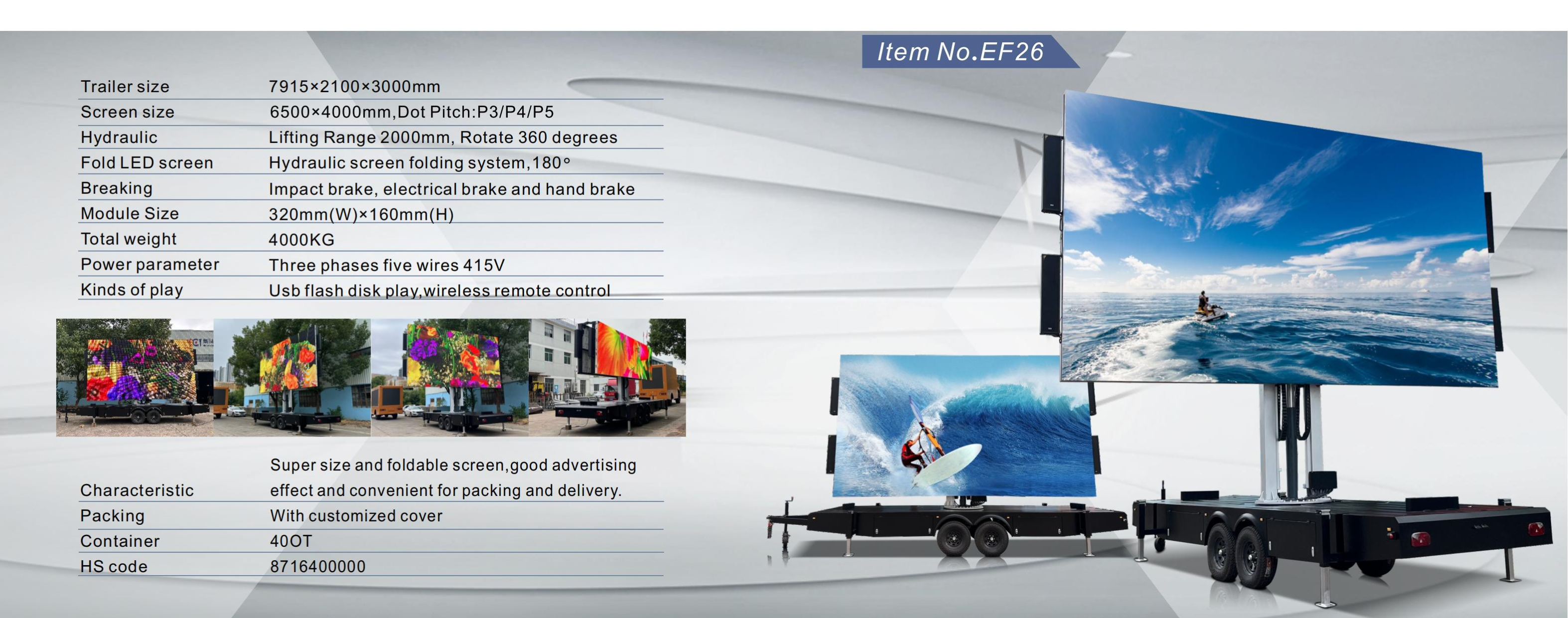

• Screen Size: Above 12㎡ (e.g., EF26 reaches 6500×4000mm), Pixel Pitch P3/P4/P5
• Mechanical Performance: Hydraulic folding (180°) + lifting (2m range) + 360° rotation, trailer equipped with impact + electronic + handbrake braking
• Power Configuration: Three-phase five-wire 380V/415V mains power supply
• Key Features: Folds to reduce volume during transport, ideal for large concerts, international event broadcasts, city landmark advertising, etc.

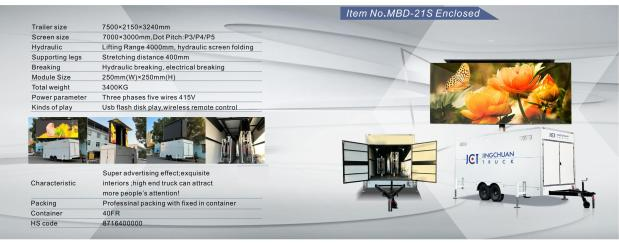

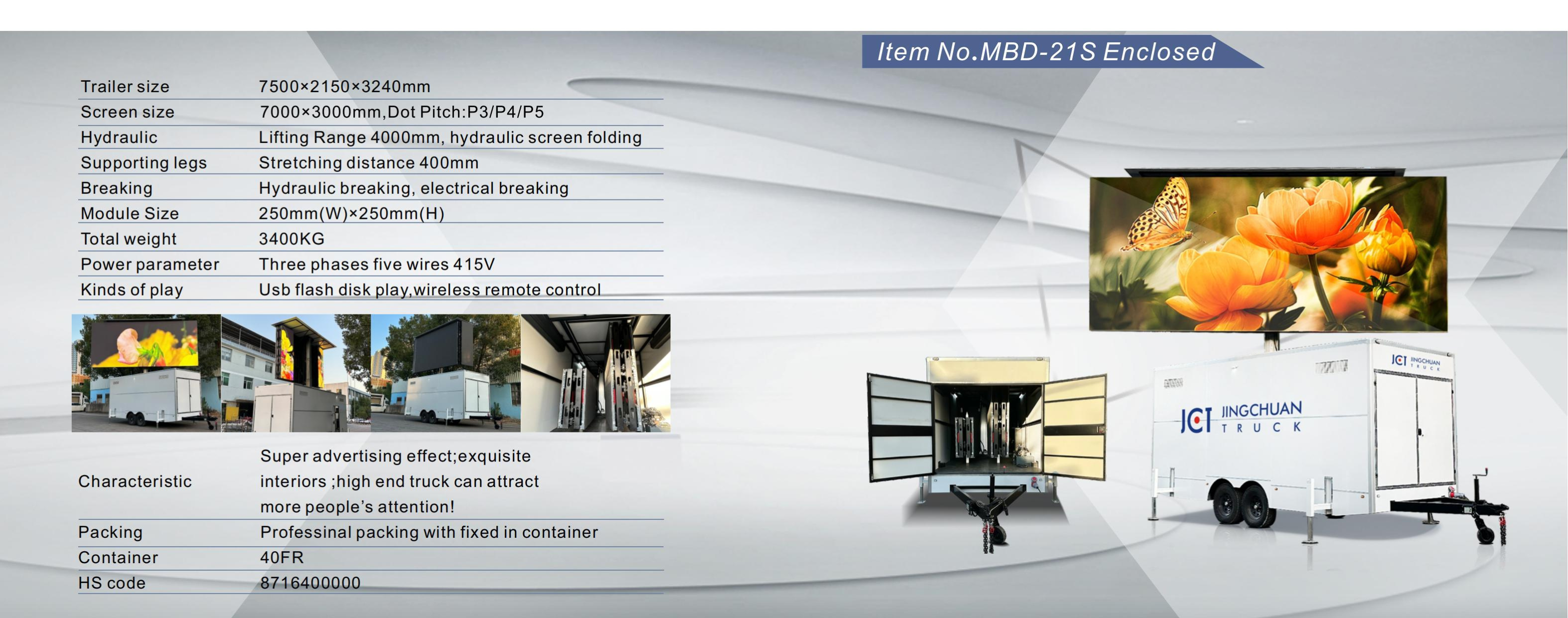

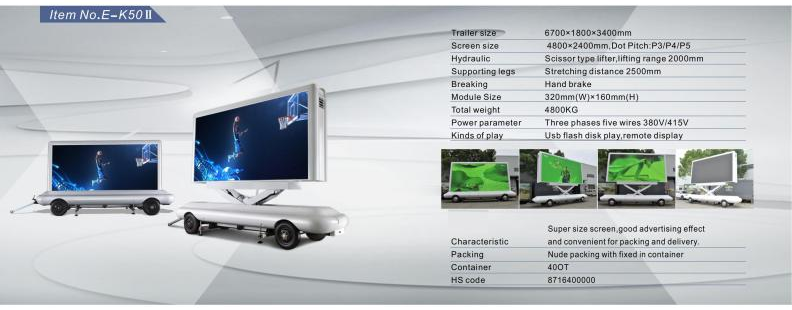

2.High-End Custom Type (MBD-21S Enclosed/Platform, E-K50II)

Representative Models: MBD-21S Enclosed/Platform, E-K50II

Specifications:

• MBD Series: Screen 7000×3000mm, Pixel Pitch P3/P4/P5, enclosed trailer / open platform design, hydraulic lifting range 2 - 4m

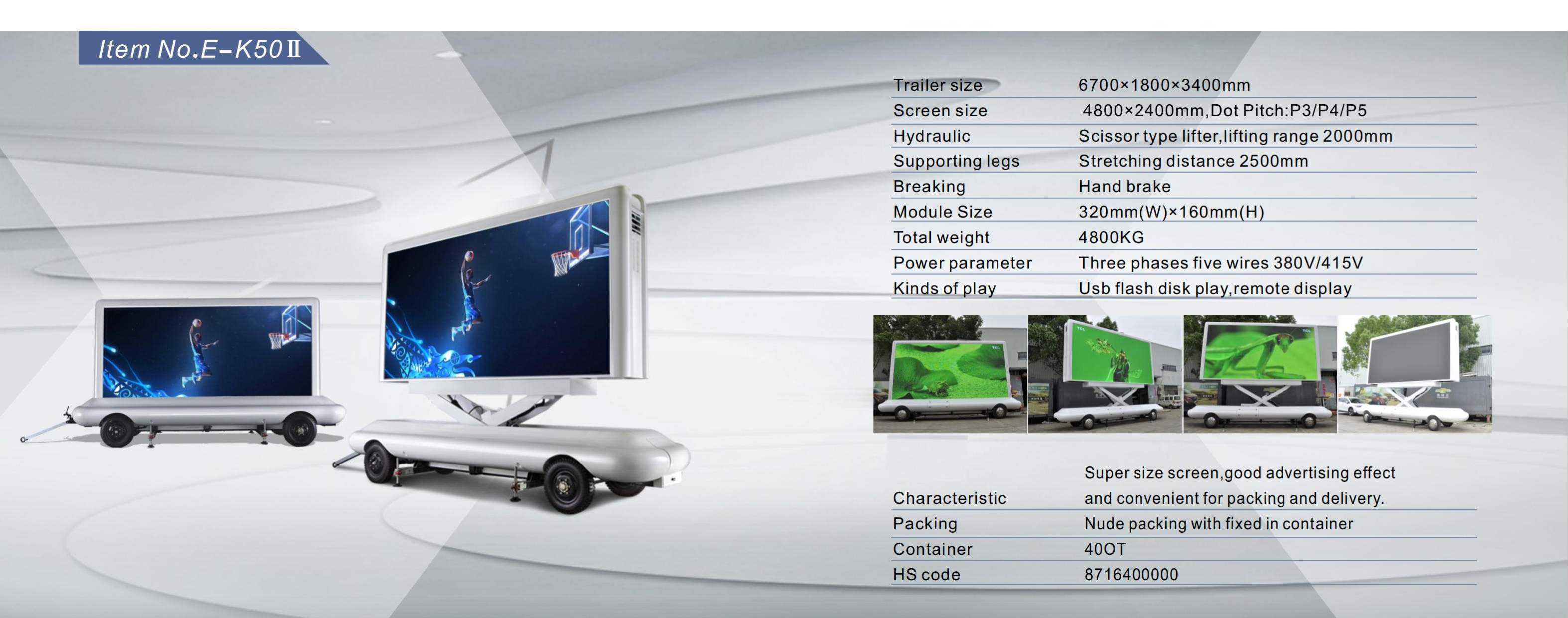

• E-K50II: Screen 4800×2400mm, Pixel Pitch P3/P4/P5, scissor lift mechanism, lifting range 2000mm
• Key Features: MBD series features refined interiors, suitable for high-end advertising tours, art exhibitions; E-K50II's unique structure adapts to creative scenarios like product launches.

Product Core Highlights

•
  Efficient Deployment:

Hydraulic/Manual lifting systems + quick-fold design enable setup by a single person in 5-15 minutes, saving 80% manpower and time compared to traditional screens.

• Environmental Adaptation:

IP65 waterproof and dustproof rating; some models withstand strong winds up to 15m/s (e.g., EF Series); solar models suit off-grid field/remote scenarios.

• Excellent Picture Quality:

Utilizes high-quality LED lamps, optional pixel pitch from P1.538 to P10, maximum brightness up to 6500 nits, ensuring clear visuals even in strong outdoor light.

• Flexible Adaptation:

Supports multiple power supply methods: mains power, solar, energy storage batteries; trailers are compatible with various road conditions, electric brake system ensures transport safety.

Application Scenarios

•
  Commercial:

Brand roadshows, product launches, shopping district advertising (Medium Universal Series, Large Flagship Series)

• Cultural & Sports:

Large concerts, international event live broadcasts, outdoor cinemas (Large Flagship Series)

• Transportation:

Road construction warnings, traffic control information release (VMS Series)

• Customization:

High-end brand tours, art exhibitions, private events (MBD Series, E-K50II)

• Community:

Community event wayfinding, market promotions, public service promotions (Small Portable Series, Medium Universal Series)

Frequently Asked Questions (FAQ)

Q: What is the lead time for custom products?
A: Standard models: 4-8 weeks. Customized products may require an additional 1-3 weeks depending on complexity. Please consult our sales advisors for specifics.

Q: Do you support transportation to other locations and provide installation guidance?
A: Yes, we offer global shipping and provide detailed installation videos and manuals. Remote installation guidance is available to ensure hassle-free use.

Q: What is the endurance of the solar-powered models?
A: Taking VMS300 as an example, the 7200AH battery + solar panel enables 24/7 continuous operation, with 3-5 days of off-grid operation guaranteed during cloudy/rainy weather.

Q: What is the product warranty policy?
A: We offer a 3-year warranty with 24-hour customer service response.

Contact Us

For customized solutions, quotations, or technical consultation, please contact us via:
Website: www.jcdisplay.com
JunChen Display, driven by technological innovation and scenario insight, creates exclusive visual communication solutions for every event. We help brands break spatial limits, enhancing influence and ensuring information is delivered efficiently.
