Wire bonding is a common technique used in the assembly of electronics, including COB (Chip-on-Board) LED module displays. In COB displays, multiple LED chips are directly mounted on a PCB (Printed Circuit Board) without using individual packages. Wire bonding is the process of connecting the LED chips to the PCB using extremely thin wires made of gold, aluminum, or copper. These wires are carefully bonded to the designated bonding pads on the LED chips and the PCB using specialized equipment.
COB LED module displays from Guangzhou Junchen Group Purchase Co., Ltd. are designed to provide a compact, high-density, energy-efficient, and durable solution for various applications such as digital signage, information display, and home theater.
Items |
P0.93 |
P1.25 |
P1.56 |
||
Module size |
150*168.75mm |
||||
Lamp resolution |
160*180 |
120*135 |
96*108 |
||
Scan thenumber |
54S |
60S |
54S |
||
Lamp surface process |
Mute surface |
||||
surface hardness |
4H |
||||
Displays the unit size Unit weight |
V168-35B:600*675*39.5mm/ V168-27B:600*337.5*39.5mm |
||||
Approximately7.9kg(35inch600*675)/approximately 4kg(27inch600*337.5)
|
|||||
Cell resolution |
640*720/640*360 |
480*540/480*270 |
384*432/384*216 |
||
Every square pixel |
1137777 points |
640000 points |
409600 points |
||
Circuit scheme |
Gongyin circuit |
Gongyang circuit |
|||
Flash Correct the storage |
have |
||||
Control system |
Nova Star |
||||
White balance brightness |
Standard size of 600 cd / m2 |
||||
refresh rate |
3840Hz |
||||
contrast ratio |
10000:1 (without ambient light) |
||||
colour temperature |
9300K(Standard) |
||||
maximum power(White balance600nit) |
Approximately 150W / box (600 * 675mm) about 75W / box (600*337.5mm) |
Approximately 130W / box (600 * 675mm) about 65W / box (600*337.5mm) |
Approximately 130W / box (600 * 675mm) about 65W / box (600*337.5mm) |
||
Viewing Angle |
160° |
||||

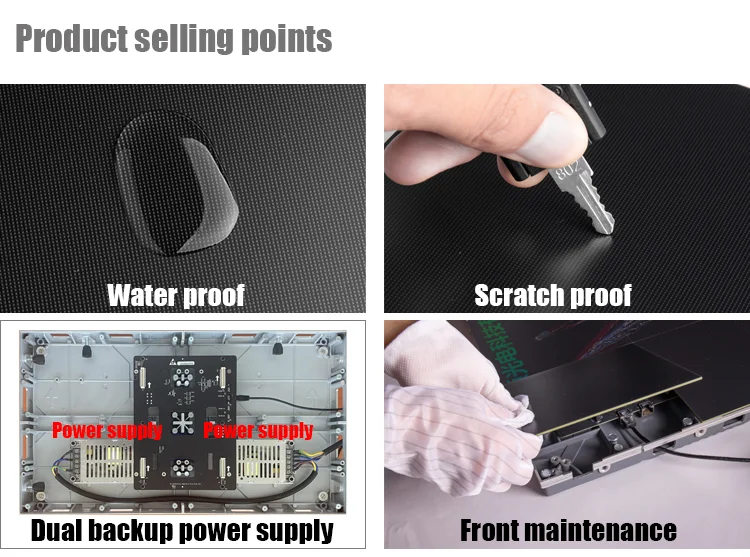

Maintenance mode |
Front service |
||||
Lamp surfaceIP levels of protection |
IP54(surface) |
||||
LED Life |
100, 000 hours |
||||
Supply Voltage |
AC 100~240V 50/60Hz |
||||
Operating Temperature |
-10ºC-+40ºC |
||||
Operating Humidity |
10%RH-90%RH |
||||
Storage temperature and humidity range |
-20ºC-+60ºC/10%RH-90%RH |
||||
attestation |
3C, EMC CLASS-A, ROHS, energy conservation |
||||
Welcome to Guangzhou Junchen Group Purchase Co., Ltd.
Specializing in high-quality indoor & outdoor LED display products, Guangzhou Junchen Group Purchase Co., Ltd. has over 5 years of experience in developing, manufacturing, and marketing. Committed to efficiency and integrity, we adhere to ISO9001:2015 quality system standards.
Our products are known for their excellent quality, competitive pricing, sincere service, and prompt technical support. They hold certifications such as CE, FCC, CCC, and ROHS, and are exported to over 70 countries across Asia, the Middle East, America, Europe, and Africa.

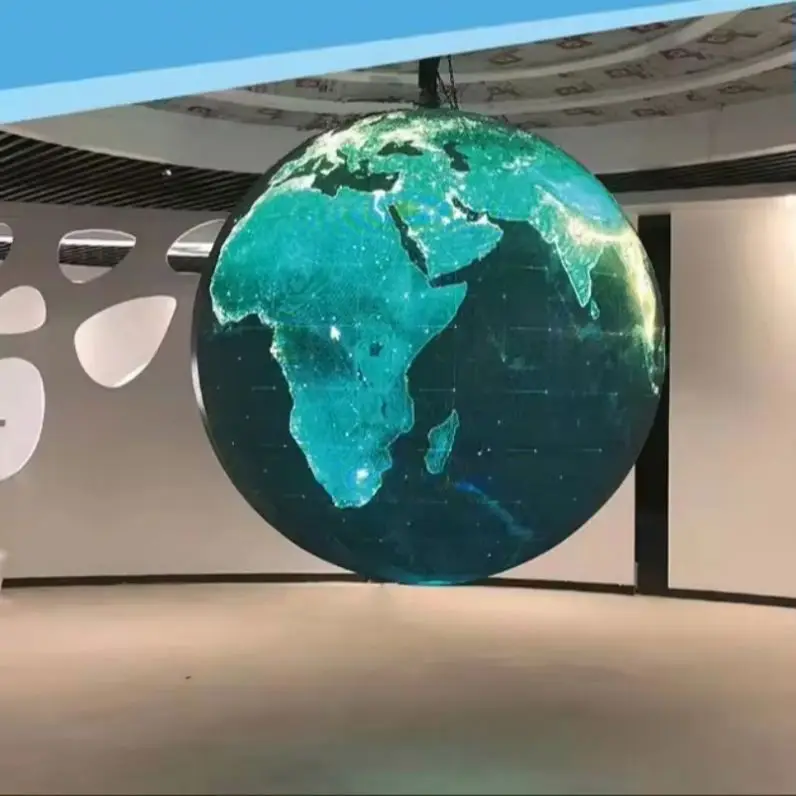

Introducing the cutting-edge LED Sphere Display, our product provides captivating visual experiences for indoor and outdoor environments. Trust us as your reliable manufacturer of high-quality LED display products.
If you have a project in mind or are interested in our products, please contact us. We look forward to establishing a successful business relationship with you and creating mutually beneficial partnerships.
1.Expert technical advice for product selection
2.Assistance in choosing products within your budget
3.Technical drawings and framework structures provided
4.Custom software customization available
1.Warranty service exceeding two years
2.Warranty service exceeding two years
3.Free maintenance services, including remote configuration and troubleshooting
4.Life time follow-up service for continuous improvement
5.Training on operating and maintaining products
1. What are the benefits of LED screens?
LED screens offer high brightness, wide angles, energy efficiency, and long lifespan,suitable for indoor and outdoor uses.
2. Can LED screens be customized in size?
Yes, we provide tailored LED screen solutions to match your requirements.
3. How do I choose the right LED screen?
Consider factors like usage, distance, lighting, and screen quality when selecting.
4. How is an LED screen maintained?
Regularly clean the surface to prevent dust buildup and avoid contact with water or chemicals.
5. Can LED screens be used outdoors?
Yes, we offer waterproof screens suitable for outdoor advertising and events.
