Indoor LED conference display for meetings & presentations
Optional pixel pitches: P1.25 / P1.53 / P1.86 / P2 / P2.5
Module size: 320mm×160mm
Die-cast aluminum cabinet: 640mm×480mm
Precise splicing for seamless screen effect, easy installation and maintenance.
It can be equipped with a foldable lifting mobile base to form an integrated all-in-one display.
4×3 cabinet layout | Dimension: 2560×1440mm
Applicable to small & medium meeting rooms

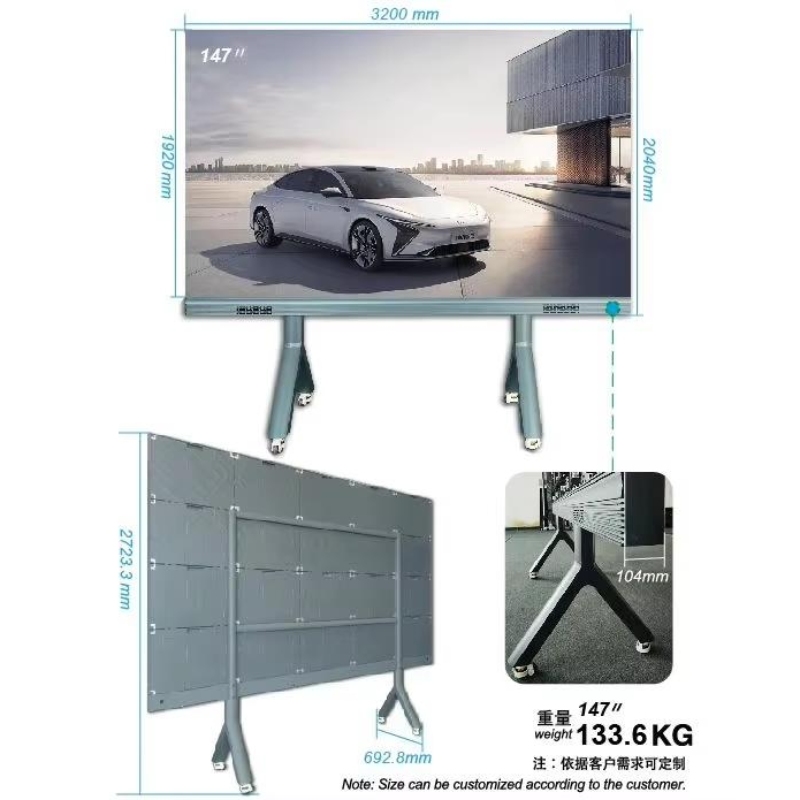

5×4 cabinet layout | Dimension: 3200×1920mm
Applicable to medium & large meeting rooms
| Parameters | Values |
|---|---|
| Screen size | 2560*1440mm & 3200*1920mm |
| Cabinet weight | 80kg |
| Material | Aluminum alloy |
| Module quantity | 72pcs modules per set |
| Module installation | Front maintenance |
| Colors | Black |
| Working environment | Indoor |
| Base | Height-adjustable base |
| Specification | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Pixel Pitch | P1.86 | P2 | P2.5 |
| Module Size | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 172*86 | 160*80 | 128*64 |
| Driving Scan | 43S | 40S | 32S |
| Screen Size | 2560*1440mm / 116" | ||
| Overall Size | L2573*H2283mm | ||
| Screen Resolution | 1376*774 | 1280*720 | 1024*576 |
| IC/refresh rate | 3840hz | ||
| brightness | Indoor 800-1000nit | ||
| Cabinet size | 640*480mm | ||
| Cabinet Qty | 4*3=12units | ||
| Avg Power consumption | Avg 300W/sqm | ||
| Max Power consumption | Max 800W/sqm | ||
| Power supply | 200W power supply | ||
| Protection grade | Indoor IP40+ | ||
| Flatness | Seam between modules is <0.1mm | ||
| AVG lifespan | Working time 100,000 hours | ||
| Dots out of control | <1/10,000 (under non-stop working situation) | ||
| Power supply requirement | 220V±10% AC50HZ/60hz three-phase five-wire system | ||
| Non-stop working time | 72 hours | ||
| Working Condition | -20°C-+45°C 10%-80%RH | ||
| Video input | Multiple compatible with PAL/NTSC TV/HDTV/SDTV signal | ||
| Software Port | WINDOWS7 NT XP 2000 | ||
| AVG trouble-free operation time | 10,000hours | ||
| Control System | Nova star system, synchronous/asynchronous | ||
| Product Type | Led TV Y-147" |
| Product Dimension | Horizontal: 5 pcs of 640mm*480mm cabinets Vertical: 4 pcs of 640mm*480mm cabinets |
| Cabinet Size | 640mm*480mm*44mm |
| Cabinet Weight | 3.6kg (Plastic door / Suite and power supply not included) |
| Full Frame Weight | 133.6kg |
| Cabinet Material | Aluminum |
| Suite Quan. | 6 pcs of Modules 320mm*160mm per cabinet |
| Installation | Grane gider hoisting and Fixed Installation |
| Color | Black |
| Working environment | Indoor |
| Application scope of pixel pitch | P1.25 P2 P2.5 |
| Standard accessories | 2 positioning pins 1 electrical installation board 1/3 Connection pieces 4 Quick locks |
1. Modular Splicing Design
Standard die-cast aluminum cabinets support free splicing, stable structure with ultra-narrow seams.
2. Front Maintenance
Magnetic modules allow front-side disassembly and repair, no extra back operation space needed.

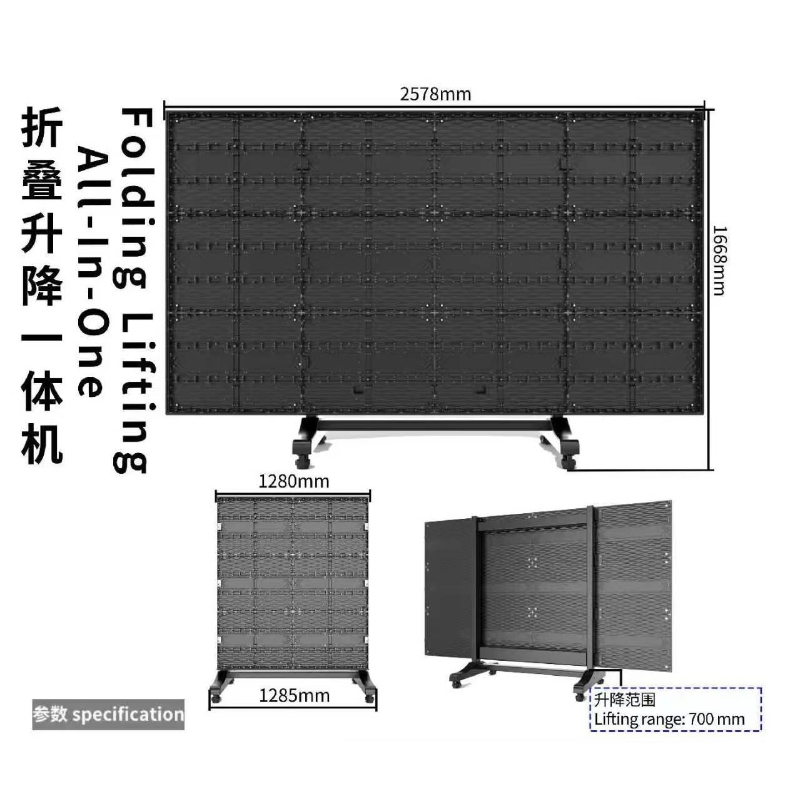

3. Foldable & Portable
Double-side foldable structure greatly reduces overall width, easy for transport and storage.
4. Height Adjustable Base
Mobile base with 700mm lifting range, flexible height adjustment and convenient position moving.
5. All-in-one Integrated Machine
Cabinet screen matched with lifting bracket, plug-and-play after simple assembly.
