1. Flexible and controllable

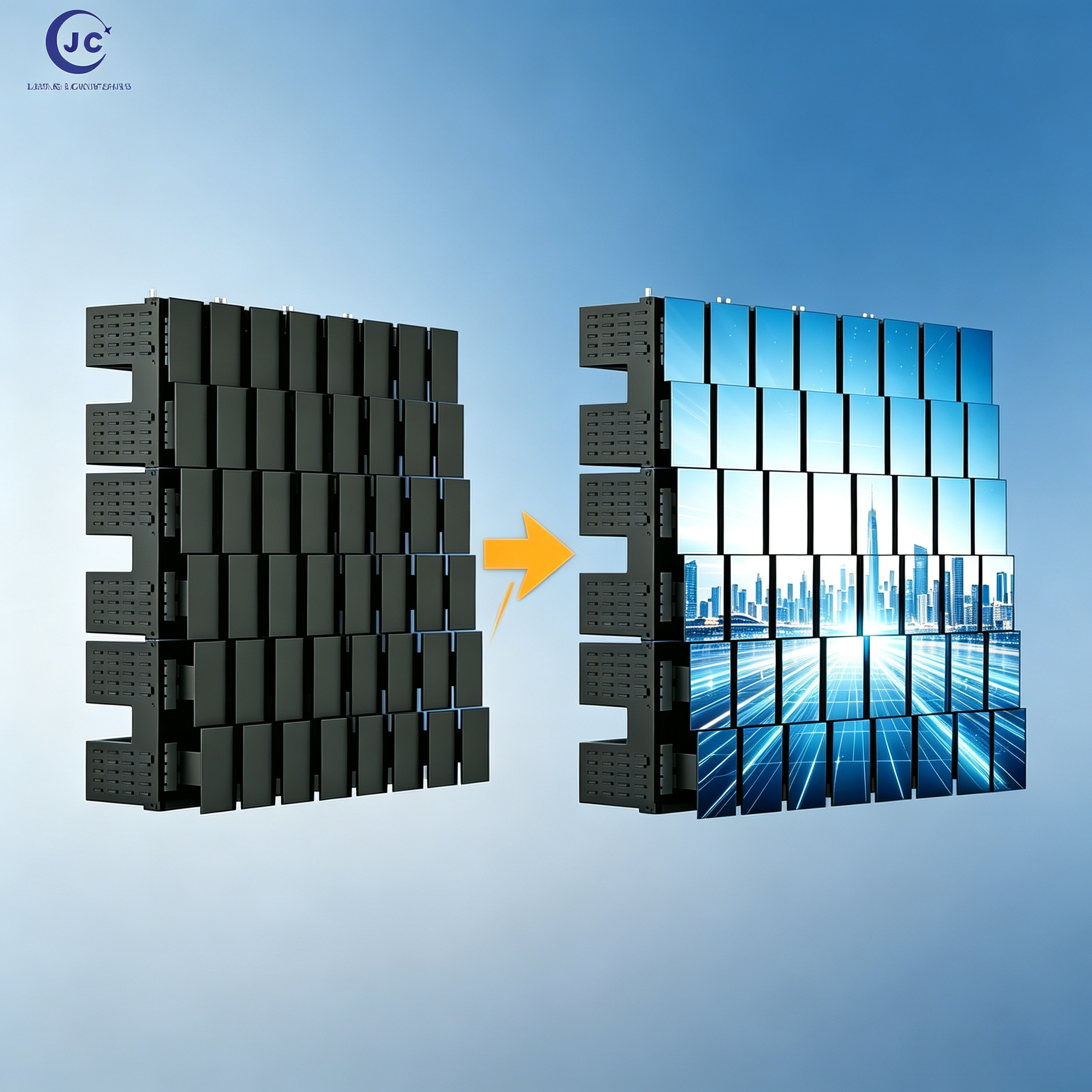

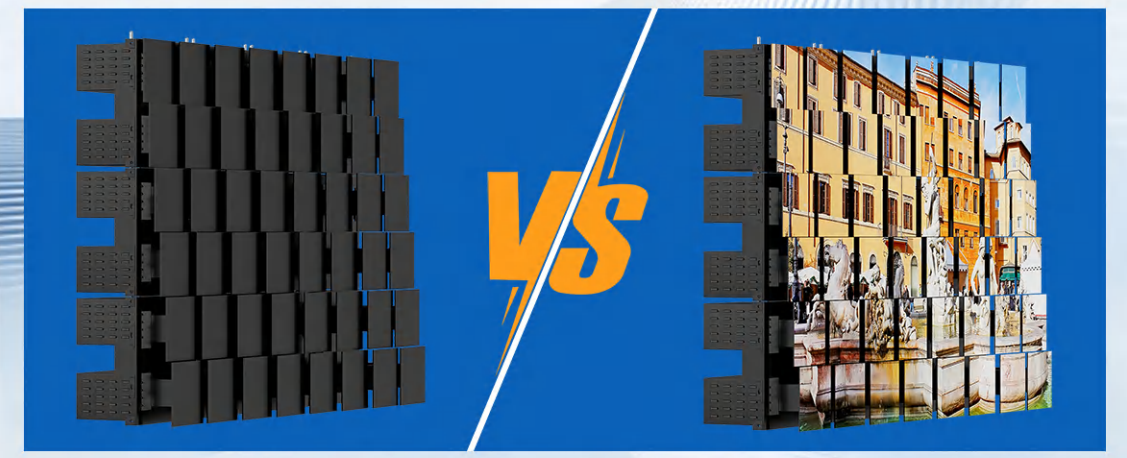

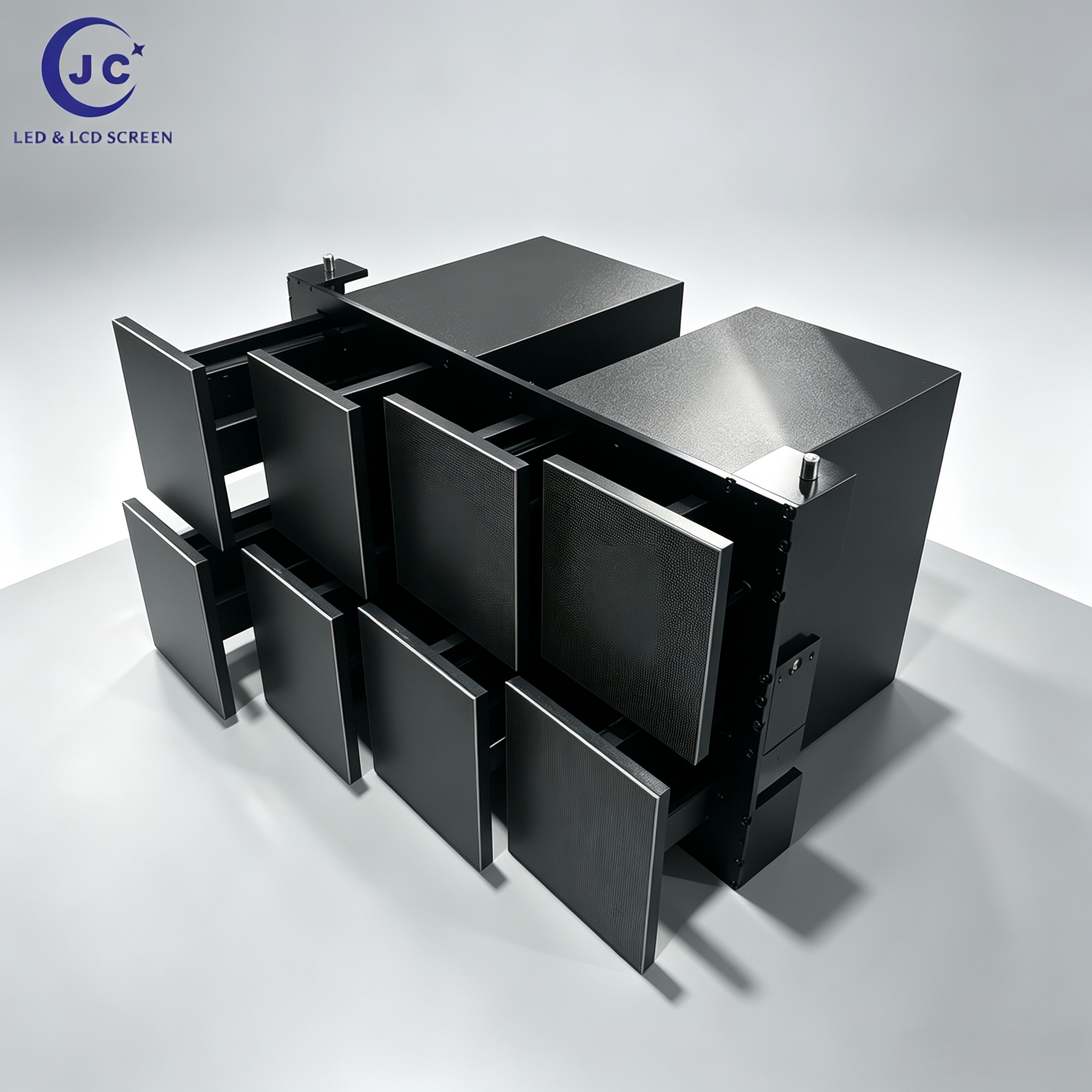

The screen is composed of multiple independent LED modules, each can be independently extended, retracted, or adjusted according to the needs to achieve diversified display effects.
2. High-definition display
Using high-quality LED modules, clear image display, and fine picture quality.
3. Easy installation and maintenance
Modular design, supports front and rear maintenance, simple and convenient, saving time and cost.
4. Control System
Advanced control system realizes real-time updating and diversified display control.

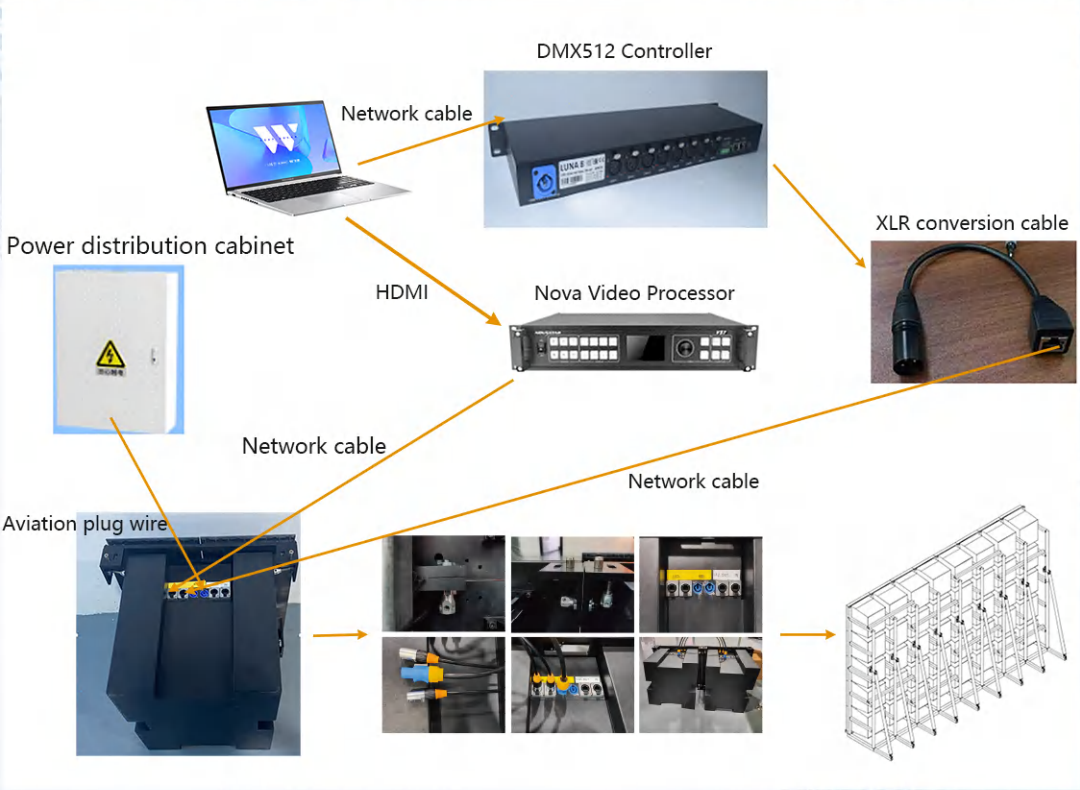

Adopting DMX512 communication protocol:

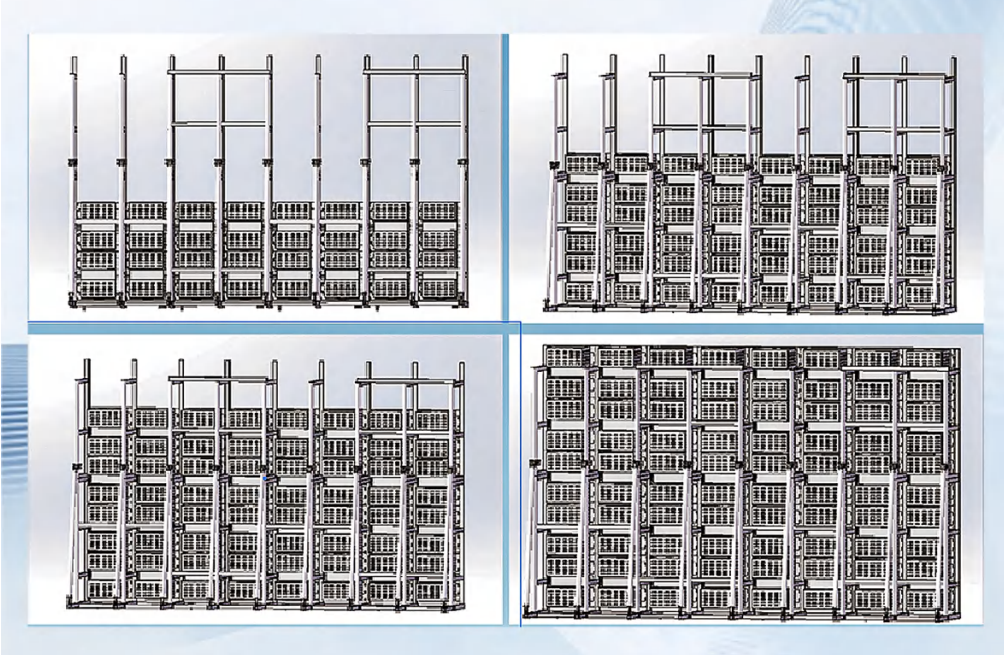

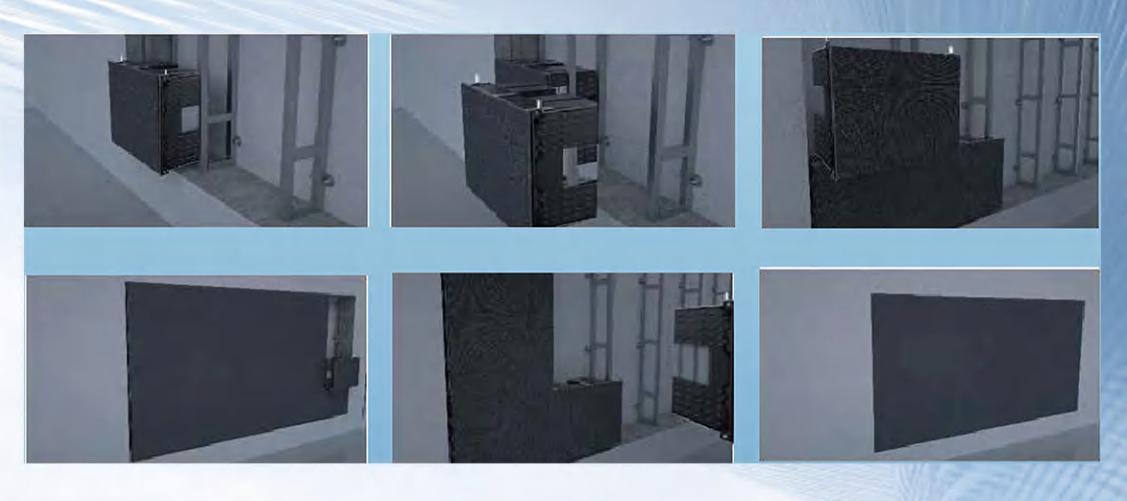

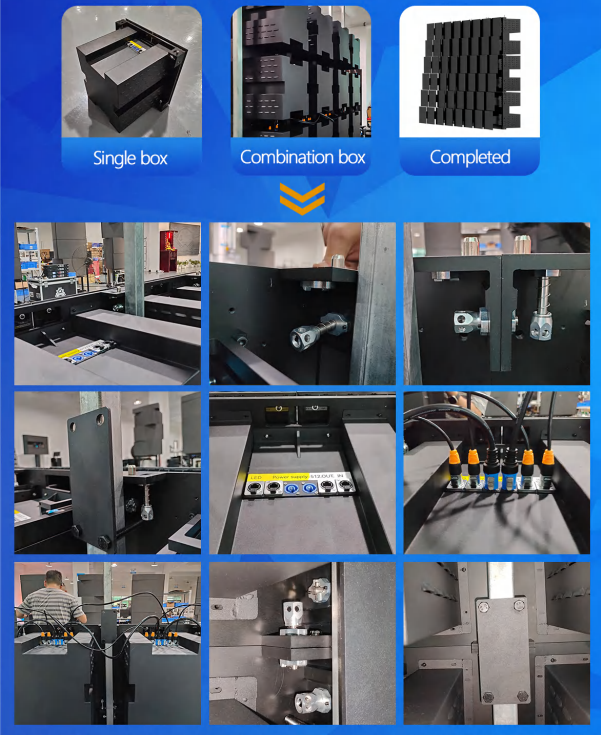

It adopts a box-type design, with the same installation method as LED rental screens.
No adjustment is needed for individual matrix gaps. The installation and adjustment speed is greatly improved.

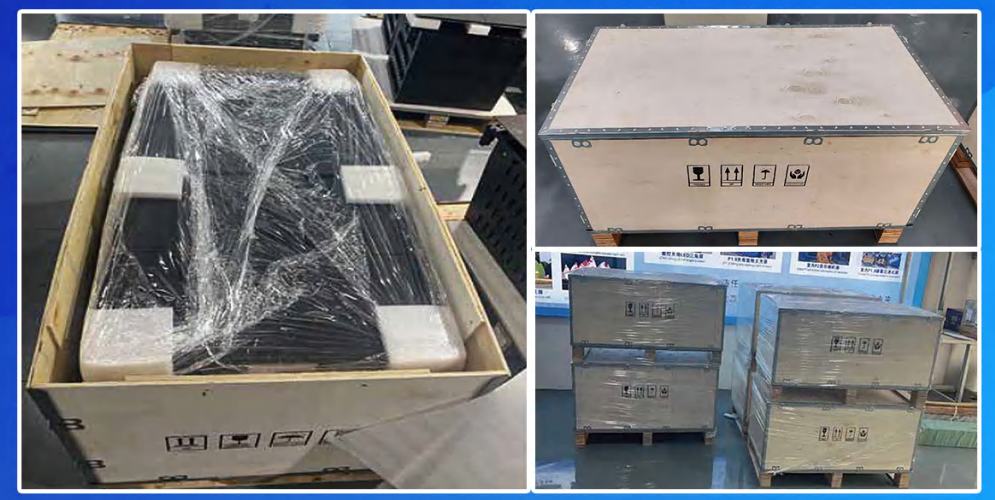

All wooden boxes are made of high-quality wood, strictly screened, and use cushioning materials inside to ensure the safety of the cabinet during transportation without scratch shocks and pressure during transportation.

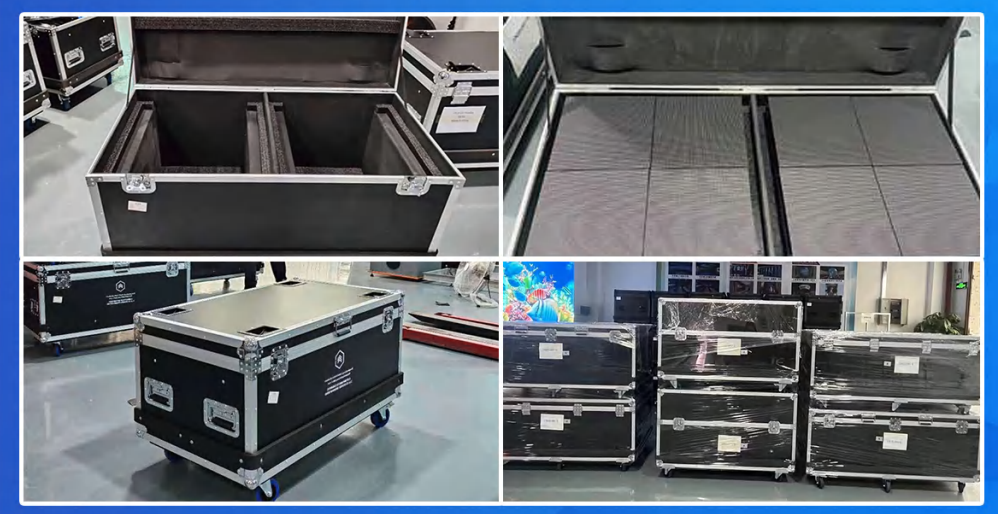

All air boxes are made of high-strength, high-quality, durable materials that meet air transport standards. Can be used repeatedly. Stackable design to save space. Strong resistance in high-altitude environments.
| Item | P1.5 | P1.9 | P2.5 |
|---|---|---|---|
| Product Model | P1.5 | P1.9 | P2.5 |
| Single matrix size (mm) | 250*250 | 250*250 | 250*250 |
| Matrix resolution (dots) | 160*160 | 128*128 | 100*100 |
| Maximum forward stroke (mm) | 200 | 200 | 200 |
| Maximum forward speed (mm/s) | 300 | 300 | 300 |
| Box size (mm) | 504*504* (2*2) | 504*504* (2*2) | 504*504* (2*2) |
| Box thickness (mm) | 380 | 380 | 380 |
| Box weight (kg) | 26 | 26 | 26 |
| Screen brightness (cd/m²) | 600-800 | 600-800 | 600-800 |
| Refresh rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Power input | AC110-240V/50-60Hz | AC110-240V/50-60Hz | AC110-240V/50-60Hz |
