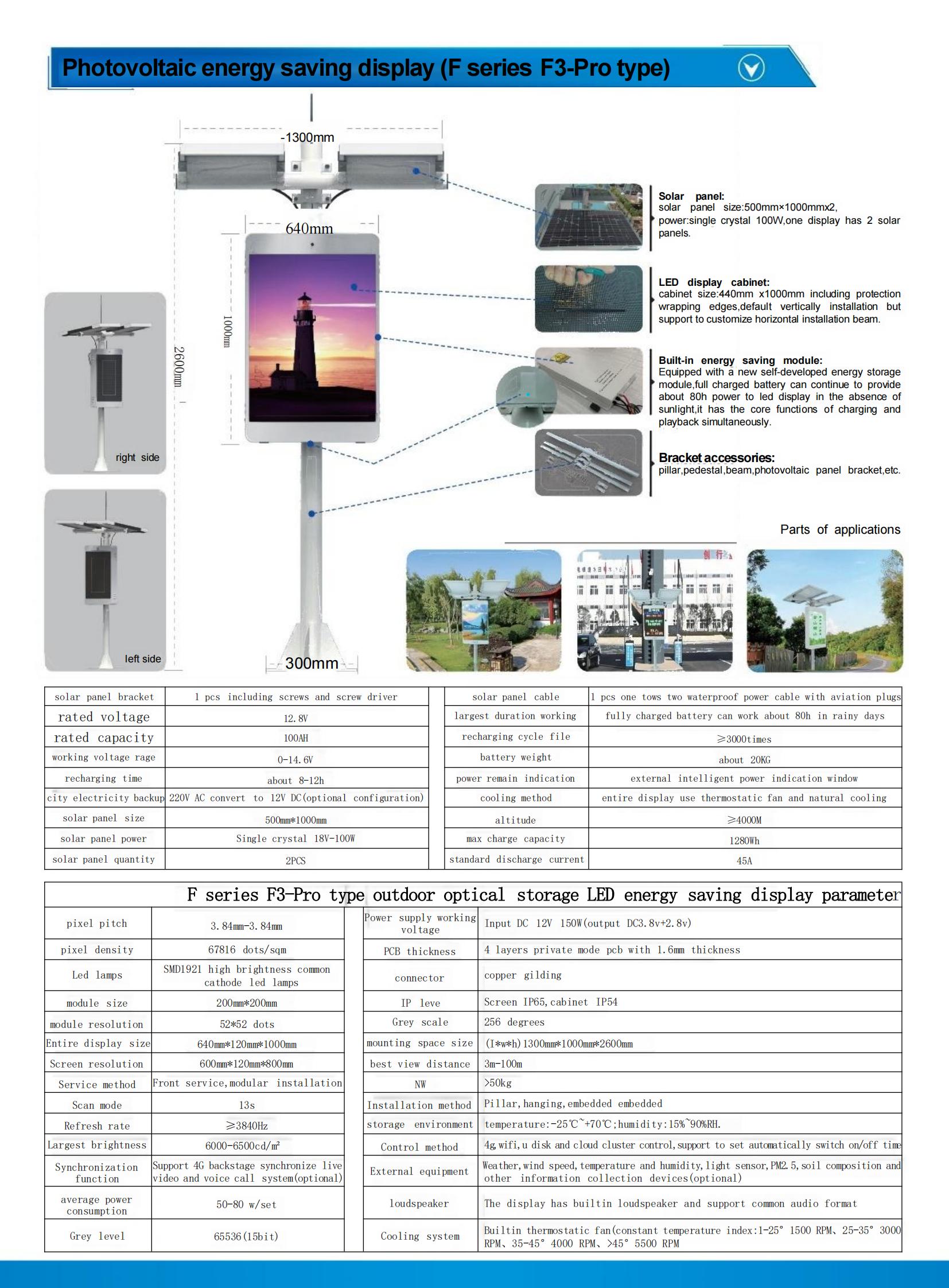

| Physical Density (dots) |
67816 dots/m² |
PCB Thickness |
4-layer private board, 1.6 thickness |
| LED Lamp Beads |
1921 High-brightness common cathode lamp beads |
Connector |
Copper plated gold |
| Module Size (mm) |
200mm*200mm |
Waterproof Grade |
Front IP65 (Cabinet IP54) |
| Module Resolution (dots) |
52 dots*52 dots |
Gray Scale Grade |
256 levels |
| Overall Size |
640mm120mm1000mm |
Floor Space |
1300mm1000mm2600mm |
| Display Size |
600mm120mm800mm |
Viewing Distance (m) |
3m-100m |
| Maintenance Method |
Front maintenance, modular installation |
Weight (kg/m²) |
50kg |
| Scanning Method |
1/13 scan |
Installation Method |
Column/Wall Hanging/Inlay |
| Refresh Rate |
≥3840Hz |
Environmental Requirements |
Temperature: -25°C~+70°C; Humidity: 15%~90%RH. |
| Maximum Brightness (cd/m²) |
6000-6500cd/m² |
Control Method |
4G, WIFI, U disk cloud cluster transmission, can set playback switch time |
| Synchronization Function |
Backend 4G synchronized live video, voice shouting system (Optional) |
External Devices |
Meteorological, wind speed, temperature and humidity, light sensor, PM2.5, soil composition and other information collection (Optional) |
| Whole Screen Average Power Consumption |
50-80W/unit |
Speaker System |
Whole screen contains built-in audio function, universal audio playback format |
| Gray Scale Grade |
65536 (15bit) |
Heat Dissipation System |
Built-in constant temperature fan (Constant temperature indicates: 1-25*1500 rpm, 25-35*3000 rpm, 35-45*4000 rpm, 45°C and above 5500 rpm) |
