The Solar-Powered LED Display is an outdoor display device that innovatively integrates solar photovoltaic power generation with LED display technology. It converts light energy into electricity through solar panels, stores it in batteries, and powers the display for information dissemination—all without relying on the traditional power grid. With advantages such as energy efficiency, low carbon footprint, ease of installation, and low operating costs, it is widely suited for various outdoor applications. As a preferred solution aligned with global green development trends, it balances information display needs with environmental sustainability.
Specifications and Parameters:
Item |
Details |
Pixel Pitch |
P3.84 |
|
Pixel Density |
67,816 dots/m² |
LED Lamp |
1921 high-brightness common cathode LED |
Module Size |
200mm × 200mm |
Module Resolution |
52 points × 52 points |
Cabinet Size |
440×120×1000mm / 640×120×1000mm / 1840×120×1000mm |
Display Size |
400×120×800mm / 600×120×1000mm / 1800×120×1000mm |
Maintenance |
Front maintenance, modular installation |
Scanning Method |
1/13 scan |
Refresh Rate |
≥3840 Hz |
Maximum Brightness |
6000–6500 cd/m² |
Waterproof Rating |
IP65 |
Compliance |
Meets international safety standards including CE, UL, ROHS, and ISO |
Minimum Order Quantity |
1 unit |

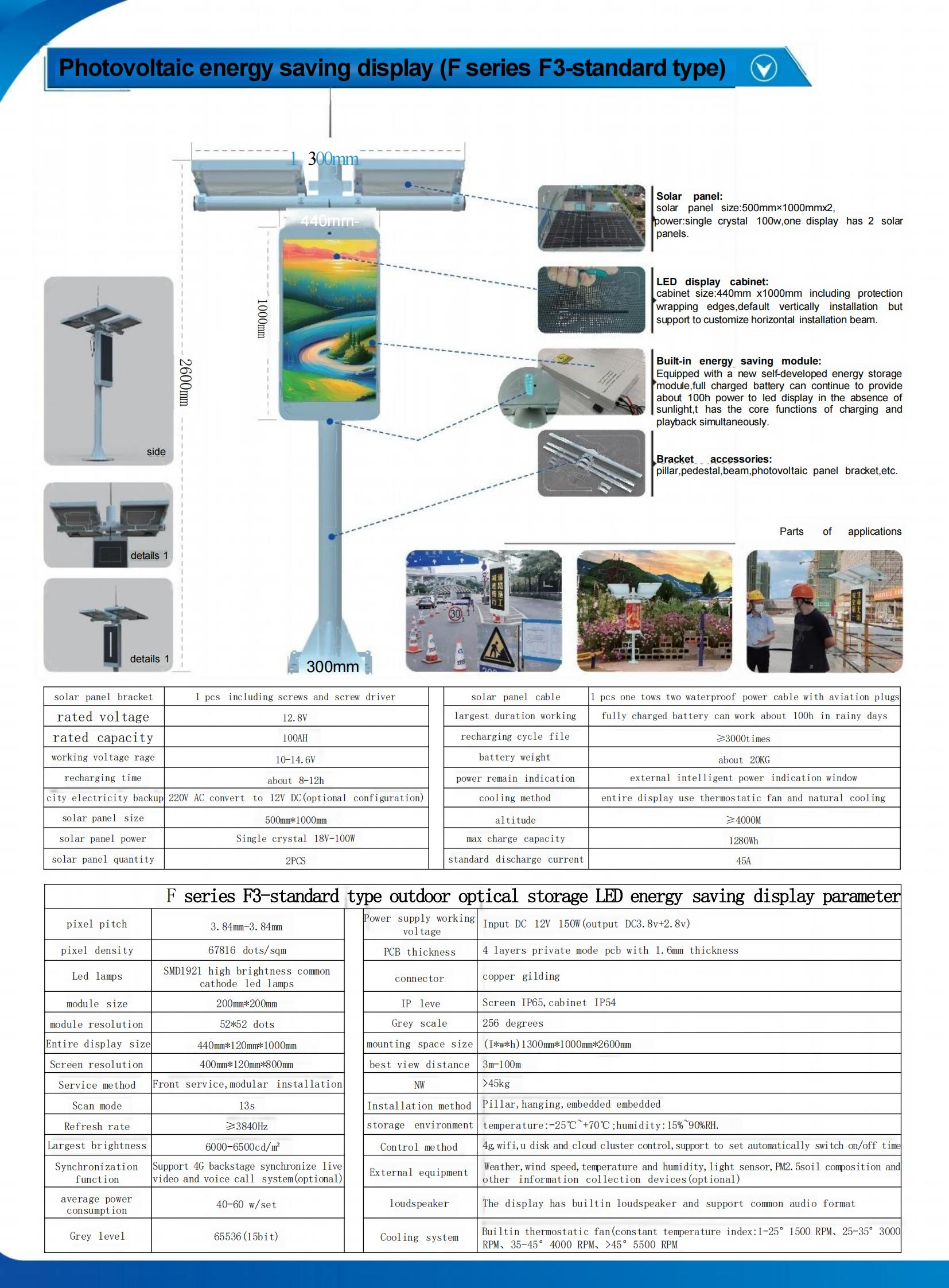

Refer to the detailed parameter sheet for more information
Product Features:
Solar-powered operation eliminates grid electricity consumption and reduces carbon emissions. Low-power, long-life LED lamps further cut energy loss, supporting green development.
No complex electrical wiring required. Simply fix the display and solar panel in the selected location, reducing installation time and cost—ideal for areas without or with limited grid access.
High-performance batteries ensure operation during cloudy days and nights. The system includes overcharge/over-discharge/short-circuit/overload protection for reliable performance.
Auto-adjusts brightness according to ambient light for optimal visibility and energy savings. Supports remote control via multiple devices for switching, content updates, and more.
High-brightness LEDs ensure clear display even in strong light, with wide viewing angles for audiences from different directions. Suitable for all-weather outdoor use.
Core components are long-lasting—solar panels (20–25 years), LED lamps (100,000+ hours), batteries (3–5 years)—minimizing part replacements and upkeep expenses.
Application Scenarios:
Ideal for commercial streets, public squares, and scenic area entrances to display commercial advertisements, public service announcements, and event promotions – effectively attracting crowds and enhancing promotional impact.
Deployed at highway service areas, toll stations, bus/subway station entrances to show real-time traffic updates, weather forecasts, and schedule information – providing convenient services for travelers.
Used within attractions and visitor centers to display guide maps, safety reminders, and site introductions – optimizing visitor experience and service quality.
During events, they show scores and match information; during off-seasons, they broadcast ads and announcements – improving venue utilization.
Installed in rural marketplaces and village committee squares to disseminate policies, agricultural technologies, and supply-demand information – facilitating grassroots information exchange.
Perfect for outdoor concerts, exhibitions, and celebrations to display schedules, interactive content, and enhance the on-site atmosphere.
Suitable for office complexes, shopping malls, and hotels – providing a professional and appealing visual presence.
Enhance the modern aesthetics of apartments, condominiums, and luxury residences.
Applicable in museums, airports, and educational institutions – combining functionality with style.
Upgrade existing structures to improve both appearance and performance.
FAQ:
Q: Can it work on cloudy or rainy days?
A: Yes. Large-capacity batteries store sufficient power in sunny conditions, typically supporting 3–7 days of operation in continuous cloudy/rainy weather, depending on battery capacity, screen power, and local sunlight.
Q: How long do solar panels last? Do they need regular replacement?
A: Lifespan is 20–25 years. No frequent replacement is needed under normal use. Regular cleaning maintains efficiency.
Q: Is display brightness adjustable? How?
A: Yes, via auto-adjustment based on ambient light or manual control via mobile app, computer, or onboard buttons.
Q: Can multiple displays be controlled remotely?
A: Yes. Using the supporting management system, you can remotely control single or multiple displays for power, content, and settings.
Q: What are the installation requirements?
A: Install in a sunny, unobstructed location with flat, solid ground capable of bearing weight, and ensure easy access for maintenance.
